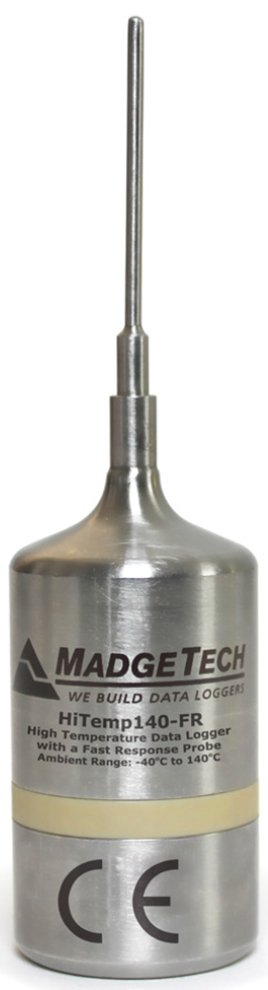

The MadgeTech HITEMP140-FR High Temperature Data Logger has an ultra-fast response time to record temperature during rapidly changing thermal processes. This high temperature data logger features a 2 inch x 0.0625 inch diameter probe and is capable of recording up to 4 Hz, which is 5 times faster than other data loggers in this class. This allows the temperature sensor to quickly adapt and accurately record temperature variations in changing environments.

MadgeTech's entire HiTemp140 data logger series is designed with food grade stainless steel. The device can be placed in environments up to 140°C and the probe is capable of measuring from -200°C to +260°C (-328°F to +500°F).

The HiTemp140-FR is also available with an optional thermal shield enclosure to extend the operating range of the data logger to -328 to 482°F (-200 to 250°C). The HiTemp140-FR-TSK (Thermal Shield Kit) comes with either a vented or flush top enclosure to accommodate a multitude of applications.

The Trigger Settings feature allows users to configure high and low temperature thresholds that when met or exceeded, will automatically start or stop recording data to memory. This data logger is capable of storing up to 32,700 date and time stamped readings and features nonvolatile solid state memory which retains data even if the battery becomes discharged.

Applications

• Autoclave verification and mapping
• Seafood processing (smoked lobsters, shellfish & shrimp)
• Steam sterilization
• Oven profiling
• Roasting
• Flash freezing
• Frying
