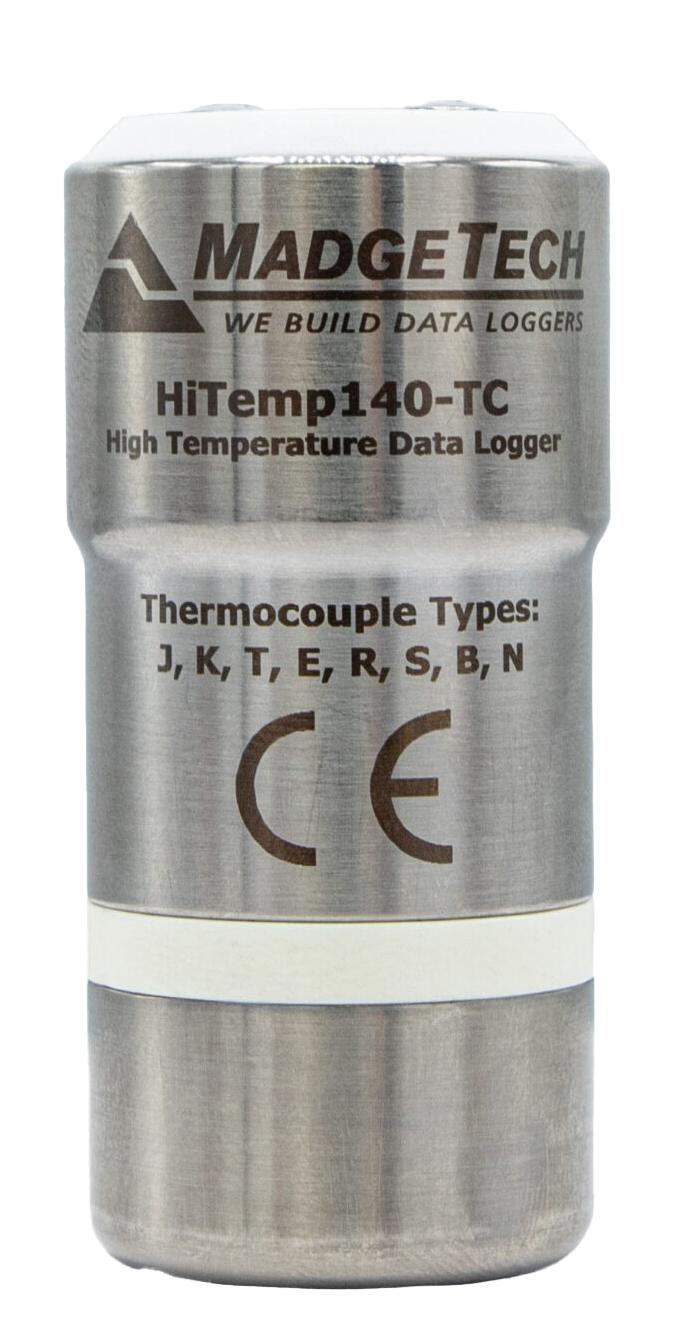

The MadgeTech HiTemp140-TC is a versatile high-temperature data logger featuring an SMP thermocouple connector. Compatible with a wide variety of thermocouple probes (J, K, T, E, R, S, B, N), this data logger is capable of measuring temperatures as high as +1820°C and as low as -270°C, depending on the probe used .

The logger is housed in a food-grade stainless steel body that can be placed in environments up to 140°C. The operating range can be extended with MadgeTech's thermal barrier options. It stores up to 16,256 time-stamped readings in non-volatile memory at user-selectable rates from 1 second to 24 hours .

Using MadgeTech 4 Software, start, stop, and download functions are simple. Data can be viewed in °C, °F, K, °R, or mV and exported to Excel. The logger features digital calibration, programmable start/stop times, and password protection . An IFC400 or IFC406 USB docking station is required and sold separately.

Key Features

• Measurement range: -270°C to +1820°C (probe dependent)
• Body temperature range: -40°C to +140°C
• Accuracy: ±0.5°C (probe dependent, types J, K, T, E, N)
• Supports thermocouple types J, K, T, E, R, S, B, N
• SMP female connector
• Memory: 16,256 readings (5,418 in trigger mode)
• Reading rate: 1 second to 24 hours
• IP50 rating
• User-replaceable high-temperature lithium battery
• Digital calibration via software

Applications

• Depyrogenation
• Food preparation and processing
• Environmental studies
• Well monitoring
• Pasteurization
• Autoclave validation
