Product Specifications

Product Description

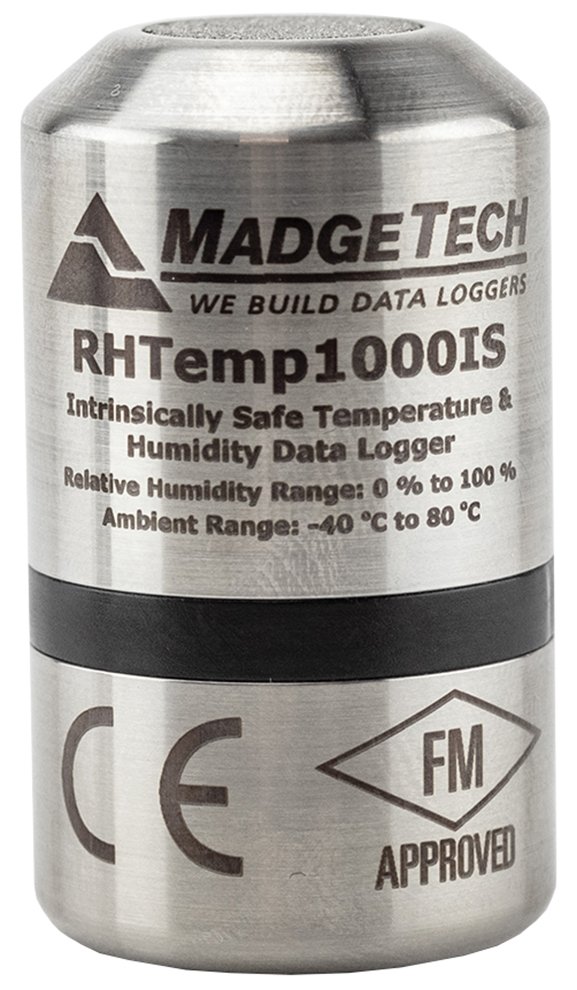

The MadgeTech RHTemp1000IS Humidity & Temperature Data logger is an Intrinsically Safe humidity and temperature data logger. The RHTemp1000IS is FM Approvals certified as Intrinsically Safe for Class 1, Division 1, groups A, B, C, and D and non-incendive for Class 1, Division 2 groups A, B, C, D and hazardous environments. This certification makes the device ideal for EtO Sterilization, environmental studies, and numerous other hostile environment applications.

One of the enhancements to the RHTemp1000IS is the stainless steel enclosure with engraved serial number and device name. The device interfaces with the IFC400 (sold separately) docking station and can be placed directly into the dock for full communications. No more removal of end-caps to download data!

The small size of the RHTemp1000IS allows it to be placed in remote or hard to reach locations. The device now features a battery life indicator allowing users to easily identify low voltage and change batteries when required. This feature maximizes the use of your battery life and is a cost saving efficiency.

The RHTemp1000IS can hold up 16,350 humidity and temperature measurements. Its real time clock ensures that all the data is time and date stamped. The MadgeTech Software is a powerful, analytic tool, available to download for free from www.madgetech.com. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis.

Applications

  • EtO sterilization
  • Environmental studies
  • Hostile environment monitoring
  • Medical & pharmaceutical
MadgeTech

RHTemp1000IS Intrinsically Safe Humidity/Temp Logger - FM Approved | MadgeTech

Class I Div 1, 316SS enclosure, docking station
MPN/Series: RHTemp1000IS

Product Specifications

Manufacturer
MadgeTech
Product Number
RHTemp1000IS
Type
Intrinsically Safe Humidity and Temperature Data Logger
Certifications
FM Approved Intrinsically Safe for Class I, Division 1, Groups A, B, C, D; non-incendive for Class I, Division 2, Groups A, B, C, D
Temperature Range
-20°C to +80°C (-4°F to +176°F)
Temperature Accuracy
±0.5°C (0°C to +55°C) calibrated
Humidity Range
0 to 100%RH
Humidity Accuracy
±3%RH maximum; ±2.0%RH typical at 25°C
Memory
16,350 readings per channel
Reading Rate
1 second to 24 hours
Battery Life
2 years typical
Enclosure
316 Stainless Steel with engraved serial number and device name
Interface
IFC400 docking station (sold separately)
Features
Battery life indicator, fast downloads (1 min full memory), real-time clock, software battery life indicator
Software
Free MadgeTech software download
Compliance
CE
