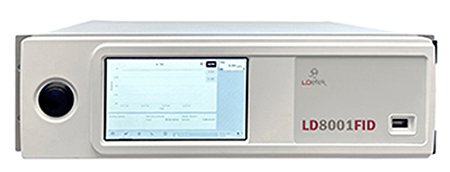

The LDetek LD8001FID is an online trace total hydrocarbons analyzer that offers an ideal solution for continuous total hydrocarbon measurements. Its compact and robust design is well-suited for industrial installation, providing reliable and accurate monitoring.

The analyzer features a flame ionization detector (FID) for sensitive and stable hydrocarbon detection. It includes a touchscreen 7-inch HDMI TFT display for easy local operation and data viewing. A range identification relay and a micro-valve for very low dead volume and fast purging time are also integrated into the design. The LD8001FID offers three selectable measurement ranges: 0-10 ppm, 0-100 ppm, and 0-1000 ppm.

Key specifications include better than ±1% of full scale accuracy, an operating temperature range of 10°C to 45°C, and a sample gas operating pressure of 10-30 psig. The analyzer provides a 4-20 mA isolated output. Utility requirements include 200 to 600 sccm air flow and 40 to 150 sccm fuel flow. It is available with either 115 VAC, 50-60 Hz or 220 VAC, 50-60 Hz power supply.
