The LDetek LD8001MG is an online multi-gas analyzer that combines multiple sensors and technologies within a single unit, allowing for the detection of multiple impurities across a wide range of analysis applications. It is designed to meet the demands of industrial gas applications, air separation units, process control, and specialty gas laboratories.

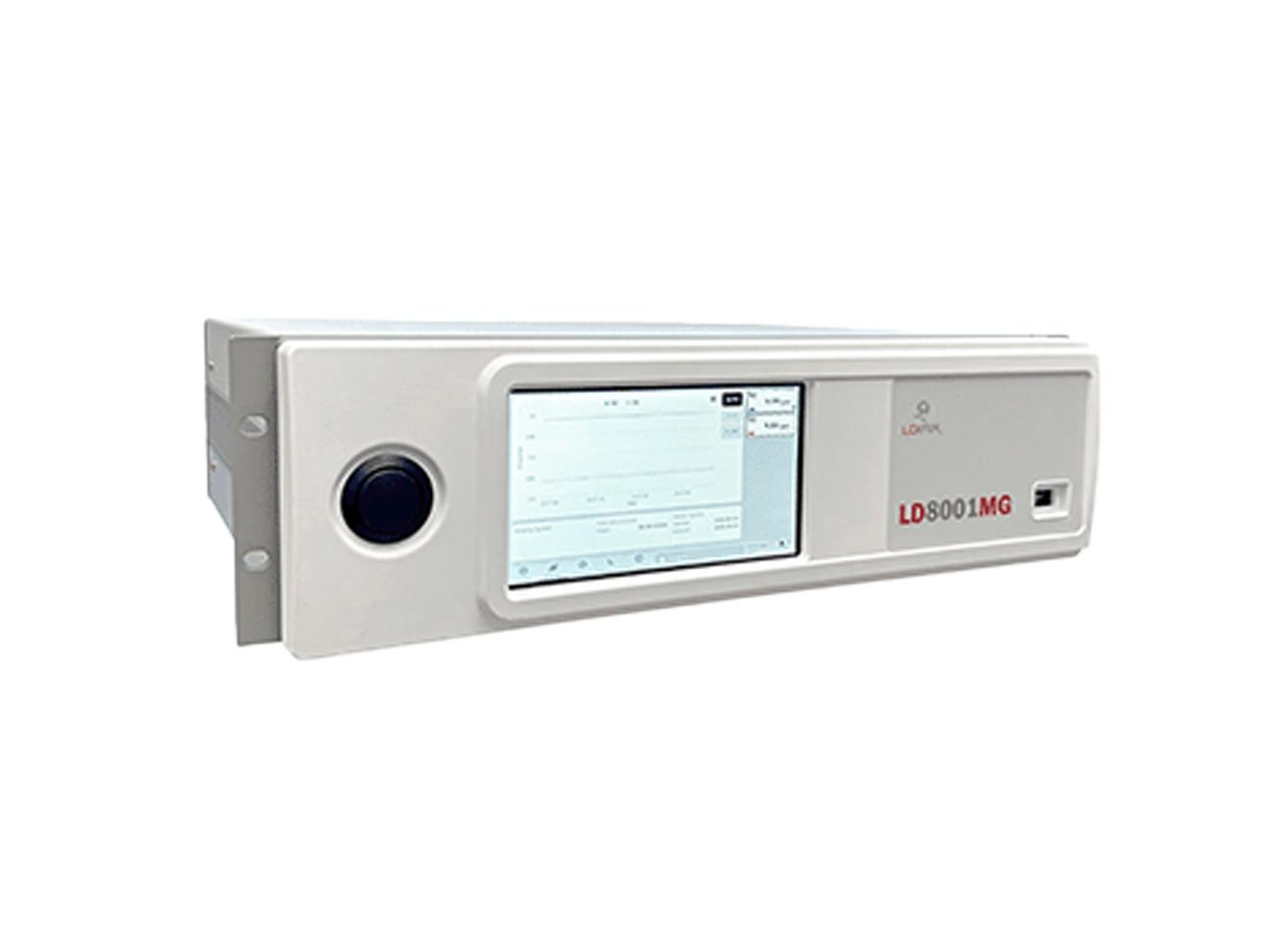

The analyzer is housed in a compact 3U rackmount enclosure and can be configured to cover up to four measurements simultaneously, including nitrogen (N2), oxygen (O2), moisture (H2O), and hydrocarbons (CnHm). It features ultra-high purity electronic flow controllers for precise sample flow control and a micro-valve design for very low dead volume and fast purging time.

Key operational features include an integrated bootloader for software updates via Ethernet, a 7" HDMI TFT touchscreen display, and LAN/Web control for remote access. It provides a 4-20 mA output per impurity, along with range identification, alarm status, and calibration contacts. The unit also includes an alarm history log and maintains low sample consumption, with an operating range of 41 to 113°F.
