Product Specifications
- Manufacturer
- Wilcoxon Sensing Technologies
- Product Number
- 793-10
- Type
- High Performance IEPE Accelerometer
- Output
- IEPE
- Connector
- MIL-C-5015 style 2-pin
- Mounting Thread
- 1/4-28 tapped hole
- Housing Material
- Stainless Steel
- Sealing
- Hermetically Sealed
- Measurement Range
- ±500g
- Application
- Industrial Vibration Monitoring, Condition Monitoring
- Availability
- Usually ships in 5-7 business days
- Part Number
- 793-10
- Documents
- Product Specs
- Warranty
- One Year
Product Description

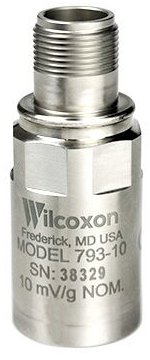

The Wilcoxon Sensing Technologies 793-10 high performance accelerometer is designed for long-term, reliable use. It features a corrosion-resistant stainless steel case and is hermetically sealed. It has a MIL-C-5015 style 2-pin output connector, a 1/4-28 tapped hole for mounting, and a R6 type connector. The 793-10 is case isolated, and has 500mV/g sensitivity and ±5% sensitivity tolerance.
The 793-10 accelerometer features ESD and reverse wiring protection. It is manufactured in an ISO 9001 facility.
Features
- Dynamic vibration (IEPE) sensor output
- 500g peak acceleration range
- 1% amplitude nonlinearity
-
Frequency response:
- ±5%: 3 to 5,000Hz
- ±10%: 2 to 7,000Hz
- ±3 dB: 1 to 15,000Hz
- 25kHz resonance frequency
- 100Ω max output impedance
- 500g peak vibration limit
- 5,000g peak shock limit
- Hermetic sealing
- MIL-C-5015 2-pin connector
