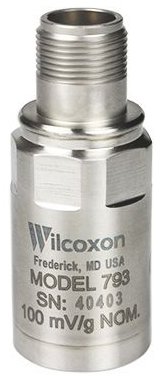

The Wilcoxon Sensing Technologies 793 general purpose accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed. It has a MIL-C-5015 style 2-pin output connector, a 1/4-28 tapped hole for mounting, and a R6 type connector. The 793 is case isolated, and has 100mV/g sensitivity and ±5% sensitivity tolerance.

The 793 accelerometer is manufactured in an ISO 9001 facility.The 793 is suited for general rotating machinery monitoring—motors, pumps, fans, gearboxes, and compressors—where reliable long-term vibration trending is required. Its 100 mV/g output sensitivity is compatible with most industrial data collectors, online monitoring systems, and portable analyzers.

Features

• Dynamic vibration (IEPE) sensor output
• 80g peak acceleration range
• 1% amplitude nonlinearity
• Frequency response:
  • ±5%: 1.5 to 5,000Hz
  • ±10%: 1 to 7,000Hz
  • ±3 dB: 0.5 to 15,000Hz
• 25kHz resonance frequency
• 100Ω max output impedance
• 500g peak vibration limit
• 5,000g peak shock limit
• Hermetic sealing
• PZT ceramic / shear sensing element
• MIL-C-5015 2-pin connector
