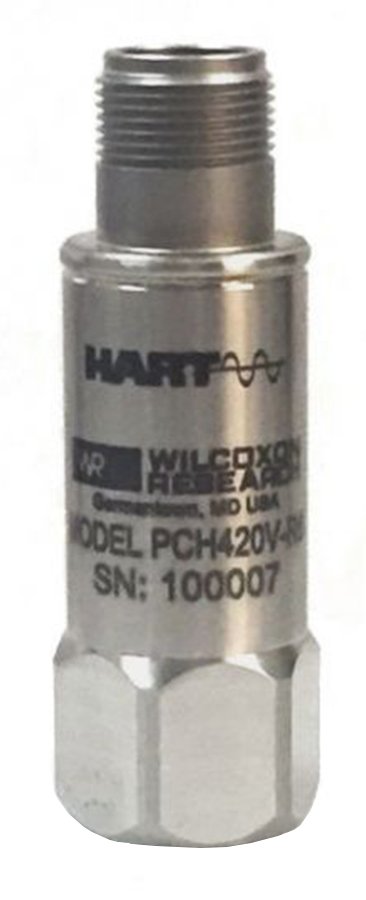

The Wilcoxon Sensing Technologies PCH420V series vibration sensors are velocity transmitters with 4-20mA outputs and the added capability of digital communications using HART protocol. The HART functionality allows user configuration of the sensors, enables multi-drop cable installations, and allows the sensor to communicate directly with a HART-enabled DCS or PLC. The PCH420V can be configured by the user for a number of different full-scale ranges and filter settings and can be connected to existing plant infrastructure.

The PCH420V's case isolated, hermetically sealed design has a 1/4-28 tapped hole for mounting and either a 4-pin M12 or 2-pin MIL-C-5015 connector. The PCH420V is manufactured in an approved ISO 9001 facility.

Features

• 4-20mA and HART 7.0 output
• 0.5 to 5.0in/sec peak full scale velocity output
• Frequency response:
  • ±10%: 10 to 1kHz
  • ±3 dB: 3.0 to 1.95kHz
• ±5% measurement accuracy
• Single or multi-drop loop installation
• 600Ω max loop resistance
• 500g peak vibration limit
• 5,000g peak shock limit
• Hermetically sealed
• 4-pin M12 or 2-pin MIL-C-5015 connector
• Class I, Div 2/Zone 2 option
