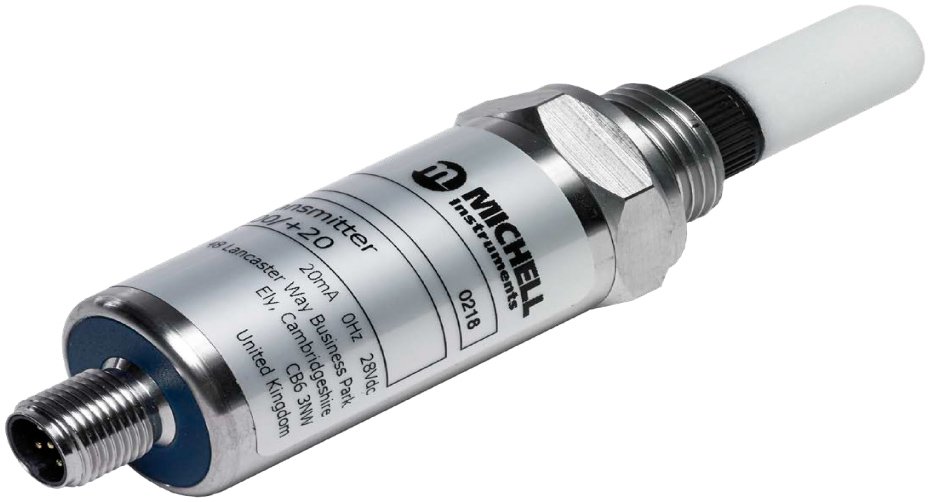

The Michell Instruments Easidew M12 Dew Point Transmitter measures dew point and moisture content and is available with a range of process connections and electrical connectors. The Easidew M12 features a service exchange program which reduces the cost of maintenance.

With a measurement range of -110 to 20°Cdp (-166 to 68°Fdp) and accuracy of ±2°Cdp, the Easidew M12 provides reliable moisture measurement for a wide variety of industrial applications. The 2-wire 4-20mA output is configurable for dew point or ppmv moisture content, and the transmitter is loop-powered from 12-28 V DC. The 316 stainless steel sensor ensures durability and compatibility with demanding process conditions.

The Easidew M12 is suitable for applications including compressed air Class 1 to Class 6 dryers, breathing air, hydrogen coolant, inert and bulk gases, glove boxes, welding gases, hazardous areas, and oxygen purity monitoring. Each unit includes a traceable calibration certificate.

Key Features

• Measurement range: -110 to 20°Cdp (-166 to 68°Fdp)
• Accuracy: ±2°Cdp
• 2-wire loop power connection, 12-28 V DC
• 316 stainless steel sensor
• Multiple process connections: 5/8" UNF, 3/4" UNF, G 1/2"
• 4-20 mA output, configurable for dew point or ppmv
• Service exchange program for low maintenance cost
• Traceable calibration certificate included

Applications

• Compressed air Class 1 to Class 6 dryers
• Breathing air
• Hydrogen coolant
• Inert and bulk gases
• Glove boxes
• Welding gases
• Hazardous areas
• Oxygen purity
