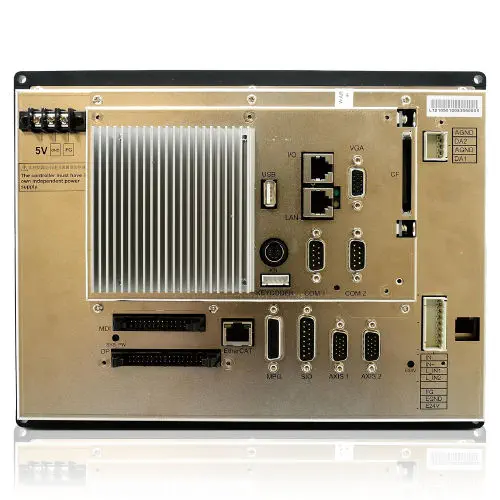

The IFC Series (Smart Machine Box) from LNC Technology is an Industry 4.0-ready monitoring and control platform designed to retrofit conventional machine tools with intelligent connectivity. Centered on a 10.4" TFT touch panel with physical function buttons, it combines multi-axis motion control, cloud-based SCADA integration, and smart sensor data processing in a single industrial controller.

How does EtherCAT-based multi-axis control work?

The IFC controller uses EtherCAT as its primary servo communication protocol, supporting up to 32 axes with native 4th/5th axis control. It provides 2 pulse axes, 16-bit analogue outputs (×2), 3 quick input points, and CIO expansion for additional I/O. The platform is compatible with a wide range of EtherCAT peripherals, sensors, and I/O modules, making it adaptable to lathes, milling machines, grinding machines, gantry robots, and plastic machinery.

What Industry 4.0 smart functions are built in?

Pre-loaded APPs handle data processing, computation, and intelligent analytics. The controller connects to the LNC SCADA cloud platform for remote equipment health monitoring, predictive maintenance scheduling, and big data analytics. Optional modules include smart vibration sensors (SVI1000/SVI2000) for processing quality monitoring, RFID for personnel authority management, vision system support, and integrated robot control for complete automated machining cells.
