Product Specifications
- Brand
- Siemens
- Model Number
- 6SL3230-3YE10-1UP0
- Type
- SINAMICS G120X Frequency Converter
- Series
- SINAMICS G120X
- Rated Power
- 0.75 kW (Variable Torque)
- Rated Current
- 2.1 A
- Supply Voltage
- 3 AC 380-480 V, 47-63 Hz
- Frame Size
- FSA (73 x 232 x 209 mm)
- Protection Rating
- IP20 / UL Open Type
- EMC Filter
- Unfiltered
- DC Terminals
- Yes
- Communication
- PROFIBUS DP
- Overload Capacity
- 110% for 60 s (Low Overload)
- Output Frequency
- 0-550 Hz
Product Description
When the cabinet already provides EMC filtering, why pay for an integrated filter?
If your panel already carries a cabinet-level EMC solution, or the installation does not require per-drive conducted-emissions compliance, the unfiltered configuration avoids the cost and panel space of a built-in C2 filter. This is the entry point when neither integrated filtering nor extras are needed — just the core drive for a small pump or fan.
If motor cables run long, can I still protect the windings?
Yes — this variant keeps DC terminals on the DC link, so an external du/dt filter or braking chopper connects directly when cable reflections threaten winding insulation on long runs. The unfiltered sibling without DC terminals (the 0UP0) drops that option to reach the lowest cost, but loses the long-cable safeguard.
Does my PROFIBUS DP network connect without a gateway?
PROFIBUS DP is onboard, so the drive drops onto an existing Profibus network as a standard node — no communications gateway. If your controller is PROFINET/EtherNet/IP, the PROFINET variant applies; for serial or building buses, the USS/Modbus/BACnet variant.
Related Products
Resources & Documentation

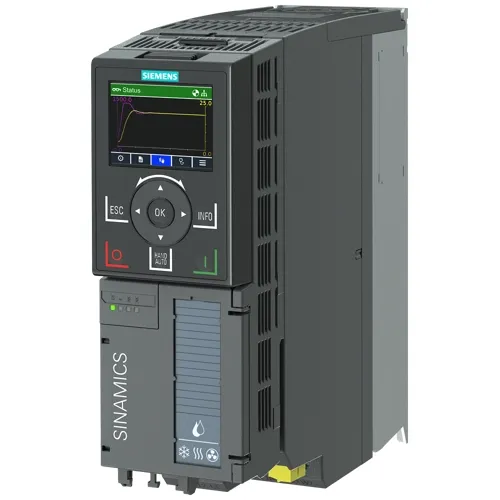

Siemens 6SL3230-3YE10-1UP0 | SINAMICS G120X 0.75 kW Unfiltered Drive with PROFIBUS DP, DC Terminals
