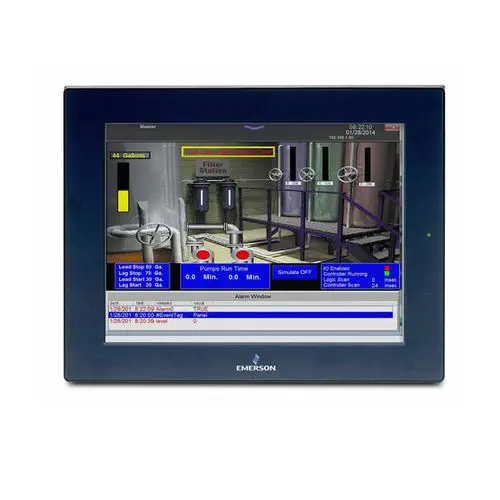

The IC755CBS15CDA is the largest QuickPanel+ in Emerson's operator terminal family — a 15-inch unit that combines HMI visualization, IEC 61131-3 PLC control, and a data historian in a single panel-mount device. Compared to the 6-inch and 7-inch QuickPanel+ models, the 15-inch variant steps up to 1 GB of DDR3 RAM, 512 MB of Flash storage, dual Fast Ethernet ports, and dual serial ports (RS-232 + RS-232/485 combo), providing the connectivity and screen real estate for complex multi-function machines.

How does the 15-inch QuickPanel+ differ from the smaller models?

Three hardware upgrades distinguish the mid/large-format QuickPanel+ (10″, 12″, 15″) from the compact 6″/7″ models. First, memory doubles from 512 MB to 1 GB DDR3 RAM and from 256 MB to 512 MB Flash — necessary for larger HMI projects with more screens, tags, and logged variables. Second, a second Fast Ethernet port and a second serial port (RS-232/RS-485 combo) enable simultaneous connections to separate control and enterprise networks, or to both a PLC and a remote I/O drop. Third, the 1024 × 768 XGA resolution at 15 inches provides more than triple the pixel count of the 7-inch 800 × 480 panel — essential for detailed process graphics, multi-pane layouts, and trend displays that would be illegible on a smaller screen.

What makes the 3-in-1 architecture valuable at this screen size?

At 15 inches, the QuickPanel+ is large enough to serve as the sole operator interface for a complex machine — displaying process graphics, alarm summaries, trend charts, and recipe management on a single screen. Having the PLC runtime and data historian in the same device eliminates the panel space, wiring, and communication latency of a separate PLC and HMI pair. For machine builders, this means one panel cutout, one power supply, one Ethernet drop, and one programming environment (Proficy Machine Edition) for the entire automation system — reducing engineering time and component count on machines that would otherwise require a separate HMI panel and PLC rack.
