The Wilcoxon Sensing Technologies 787-500 series accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and features extended low frequency response, clear signals at low vibration levels, and improved signal to noise ratio.

The 787-500 has a 500mV/g, ±5% sensitivity tolerance, and is case isolated and internally shielded. The 787-500 basic models feature a 1/4-28 captive hex head screw with 0.046" diameter safety wire hole and a MIL-C-5015 2-pin connector. M12 models feature a M6 captive screw and a M12 4-pin connector.

The 787-500 is manufactured in an ISO 9001 facility.

Features

• 10g peak acceleration range
• 500g peak vibration limit
• 5,000g peak shock limit
• Frequency response:
  • ±10%: 0.5 to 5,000Hz
  • ±3 dB: 0.2 to 10,000Hz
• 22kHz resonance frequency
• 100Ω max output impedance
• Hermetic sealing
• PZT ceramic / shear sensing element
• Connector:

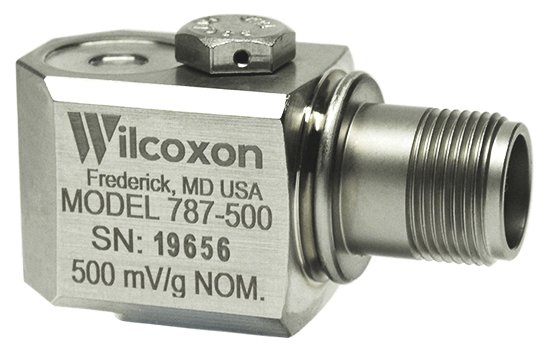

  • 787-500, 787-500-D2, 787-500-IS: MIL-C-5015, 2-pin

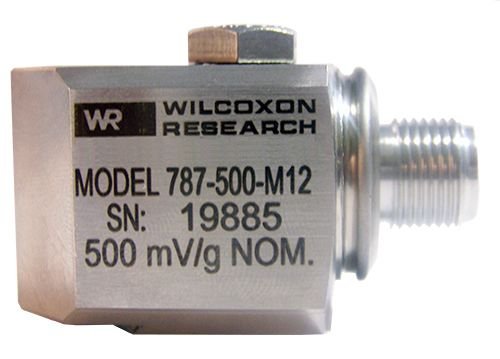

  • 787-500-M12, 787-500-M12-D2, 787-500-M12-IS: M12 style, 4-pin
