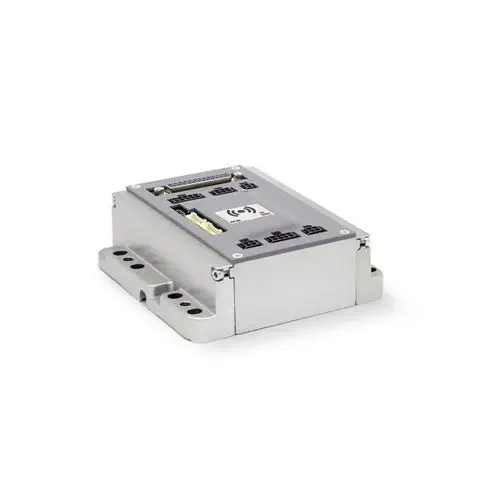

The DRCS series is Camozzi's full-digital stepper motor drive platform — a single form factor covering all control modes and communication options for the company's two-phase stepper motors. Measuring just 122.6 × 113.2 × 39 mm and weighing 460 g, the DRCS packs a dual H-bridge amplifier, 256-command PLC sequencer, and multi-protocol connectivity into a compact IP20 housing suited for DIN-rail mounting in control cabinets.

What control modes does the DRCS support, and how do they differ?

The DRCS offers three control interfaces on all models. Digital I/O mode uses 12 opto-isolated inputs to trigger up to 256 pre-programmed motion commands — each defining target position, speed, acceleration, and deceleration in absolute or relative terms. Pulse/Direction mode accepts step and direction signals for traditional CNC-style motion control. CANopen models add CiA 301 and CiA 402 (interpolated position mode) for networked multi-axis applications. All three modes can coexist on the same drive, selected by configuration.

How does Industry 4.0 connectivity work on the DRCS?

"-B" suffix models integrate Bluetooth 2.1 + EDR / BLE 4.0 and WLAN for wireless configuration via Camozzi's QSet software — no USB cable needed. NFC enables contactless data extraction: an operator can read drive parameters, diagnostics, and configuration from a smartphone or tablet without powering the drive. This is particularly useful for maintenance teams managing multiple machines across a factory floor.

What protections and diagnostics does the DRCS include?

The drive monitors overvoltage, undervoltage, overtemperature, motor short-circuit, and ground/earth fault conditions. A green LED indicates ready state. Holding current automatically reduces when the motor is stopped — configurable by current percentage or delay time — reducing unnecessary heating. The encoder feedback input (100–5000 differential pulses per revolution) closes the position loop for stall detection and position verification.

Frequently Asked Questions

Which Camozzi motors are compatible with the DRCS?

The DRCS is designed for Camozzi's small and medium-sized two-phase stepper motors. It can drive any two-phase bipolar stepper motor within its 0.1–5 A continuous current range and 24–60 V DC power envelope. Always match the motor's rated current and voltage to the drive's operating range, and verify mechanical compatibility with the DRCS's 122.6 × 113.2 mm footprint.

Does the DRCS require forced cooling?

Not under normal conditions. The DRCS operates at 0–40 °C with natural convection. For ambient temperatures up to 55 °C, forced ventilation is required. The drive's overtemperature protection will shut it down before damage occurs if cooling is insufficient.
