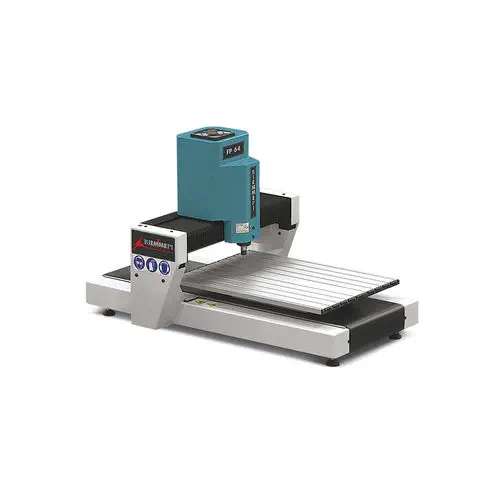

BIEMMEPI has built CNC pantographs in Brembate di Sopra since 1981, and the FP 64 sits at the top of its three-machine FP family. Where the FP 23 covers 240 x 300 mm and the FP 53 covers 500 x 300 mm, the FP 64 opens up 650 x 450 mm in one pass - the difference between engraving a nameplate and machining a full industrial plate or mould insert. The cast-iron base carries a 600 W mechanical spindle spinning from 1000 to 24,000 rpm on ER16 collets that accept cutters up to 10 mm.

Why does resolution matter more than power on a pantograph?

Jewellery, dials, stamps and mould lettering live in fractions of a millimetre. Prestressed 25 mm anti-backlash ball screws on hardened aluminium ways, driven by microstep motors with 8-micron resolution, hold contour lines that a rack-and-pinion hobby router visibly breaks up. Working feed reaches 3000 mm/min with 7000 mm/min rapids, so the fine passes stay short and the air moves waste fast.

How does programming stay open?

The BMPCAD software runs under Windows and speaks ISO and Fanuc-compatible code, so a shop moving from a generic CNC mill keeps its postprocessors and G-code habits. Tool changes are manual but the transparent safety shield keeps every pass visible. For shops that only need 240 x 300 mm, the smaller FP 23 costs less; for full 650 x 450 mm plates, the FP 64 is the only machine in the family that does it in a single setup.
