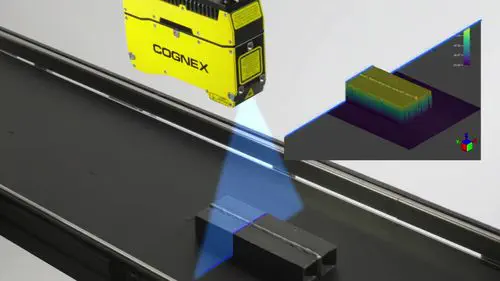

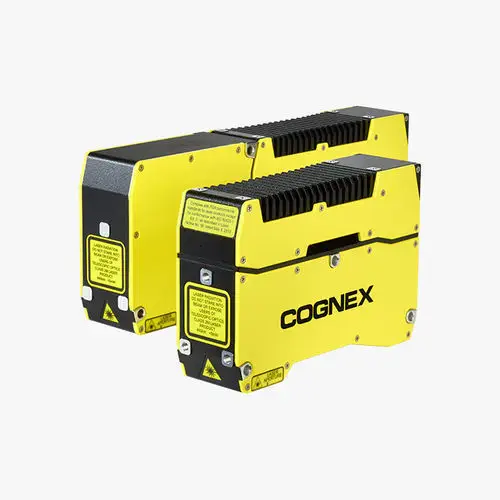

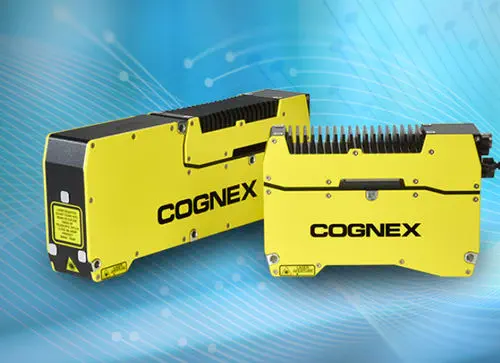

The In-Sight L38 is an AI-powered 3D vision system from Cognex, combining patented speckle-free laser optics with embedded AI tools for industrial inspection, measurement, and robotic guidance. Available in five models (ISL38-33 through ISL38-500) with measurement ranges from 44 mm to 1,100 mm, the system uses a 1920-pixel image sensor with Class 2M blue (450 nm) or red (640 nm) laser sources. The speckle-free laser delivers up to 5× more light than conventional sensors, minimizing glare and producing higher-contrast 3D point clouds for reliable defect detection and dimensional measurement.

How does AI simplify 3D inspection compared to traditional rule-based programming?

Traditional 3D inspection requires writing explicit rules for every defect type — a slow, brittle process that struggles with subtle or variable anomalies. The In-Sight L38 uses embedded AI that trains on as few as 5–10 labeled images, learning to distinguish acceptable variance from genuine defects. A single AI tool can detect subtle surface defects, quantify 3D variances, and return results in real-world units (volume, area, height). The 3D-to-2D projection feature converts rich point cloud data into simplified 2D images, making it easier for operators to label defects without 3D visualization expertise. The unified software platform supports both graphical training for simple applications and spreadsheet programming for advanced use cases within the familiar In-Sight ecosystem.

Which model fits which application?

Five models span the full range of industrial inspection needs. The ISL38-33 and ISL38-50 cover precision small-part inspection with 33–106 mm measurement ranges. The ISL38-100 and ISL38-300 handle mid-range applications at 235–745 mm ranges, with the ISL38-300 achieving 2 µm Z-repeatability. The ISL38-500 extends to 1,100 mm for large-part or long-standoff applications. All models share the same 101 × 150.5 × 45 mm aluminum housing (~940 g), M12 connectivity, and 0°C to 45°C operating range. The Class 2M laser safety rating means no expensive protective enclosures are required, and adjustments can be made without stopping the production line.
