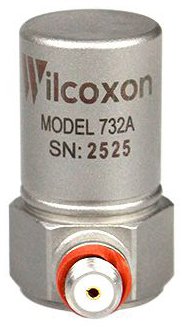

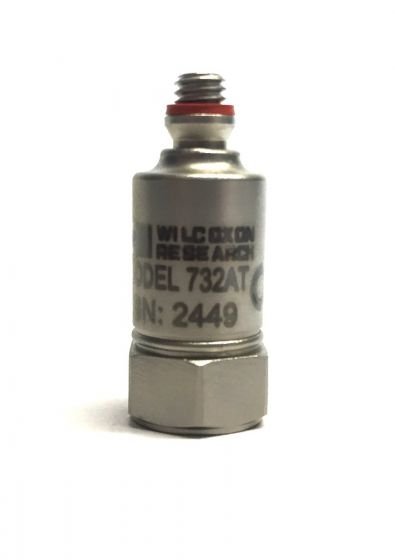

The Wilcoxon Sensing Technologies 732 series high frequency accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 10-32 UNF tapped holefor mounting with SF1 stud (included), a 10-32 coaxial output connector, and an R1 mating connector. The 732A model has a side exit connector, and the 732AT model has a top exit connector. The 732 is case grounded and manufactured in an ISO 9001 facility.

High-frequency accelerometers like the 732 series are used on machinery with gear mesh or small bearings, such as high-speed machine tool spindles and compressors. At high frequencies, there is little vibration in terms of displacement and velocity; however, acceleration amplitudes can be significant, making high-frequency accelerometers essential for early fault detection.

Features

• Dynamic vibration (IEPE) sensor output
• 10mV/g sensitivity
• ±5% sensitivity tolerance
• 500g peak acceleration range
• Frequency response:
  • ±5%: 2 to 15,000Hz
  • ±3 dB: 0.5 to 25,000Hz
• 60 kHz resonance frequency
• 100Ω max output impedance
• 500g peak vibration limit
• 5,000g peak shock limit
