Product Specifications
- Manufacturer
- RKI Instruments
- Model Number
- AirLink 7032
- Type
- Gas Detectors
- Channel Capacity
- Up to 32 wireless inputs + 4 wired 4-20mA inputs
- Display
- 7-inch full color touchscreen
- Output
- RS-485 Modbus
- Operating Temperature
- -4° to 122°F (-20° to 50°C)
- Documents
- Product Specs
Product Description

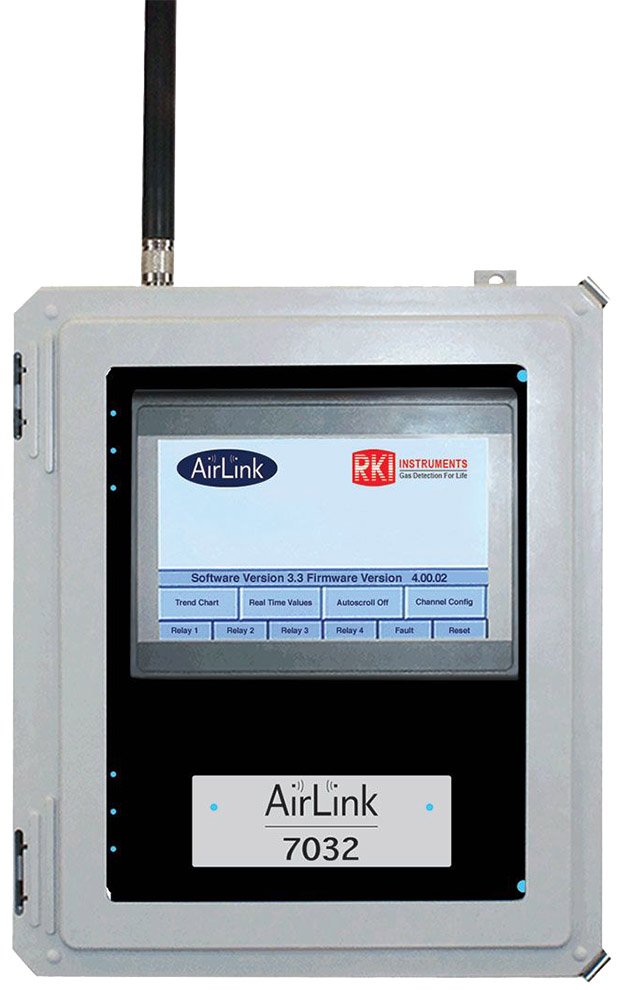

The RKI AirLink 7032 is a hybrid wireless controller supporting up to 32 wireless sensor inputs, with four channels configurable for 4-20mA wired input. It is compatible with both wireless and wired sensors for flexible system configuration.
The 7-inch full color touchscreen provides easy monitoring and control. Features include adjustable background gas setting, programmable alarms, RS-485 Modbus output, and 2GB USB drive for datalogging. Operating voltage 12 to 35 VDC (optional AC power supply). Applications include petrochemical plants, refineries, water/wastewater treatment, manufacturing, automotive, semiconductor, and chemical plants.
