When a 16A breaker keeps tripping because your customer just added another oven, or a workshop table saw demands more headroom, you reach for a 32A. The ABB S201-B32 is the next step up from the usual 16A or 20A branch protection, yet still within the B-curve family for general-purpose circuits with modest inrush.

What 32A Actually Means
At 230V, 32A delivers about 7.3 kVA — enough for a large electric water heater, a commercial dishwasher, a small air compressor, or a cluster of heavy power tools running simultaneously. The breaker does not add protection above what a 16A offers; it simply allows more current before tripping on overload. The B curve still trips magnetically at 3–5 times rated current (96–160A), which is sufficiently high to avoid nuisance trips from ordinary motor starts but low enough to clear short circuits quickly.

Where You Will Not Use This
Do not put a 32A breaker on a circuit wired with 1.5mm² cable. That is a fire hazard. The breaker must be matched to the cable ampacity. For 32A, you need at least 4mm² copper (depending on installation method and ambient temperature). This is not a "universal replacement" for lower-rated breakers; it is a specific tool for circuits designed for 32A loads.

Electrical Reality

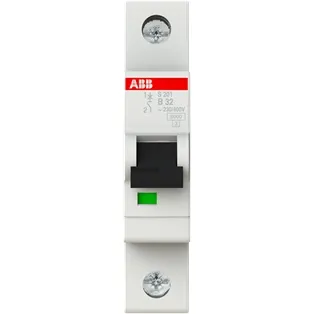

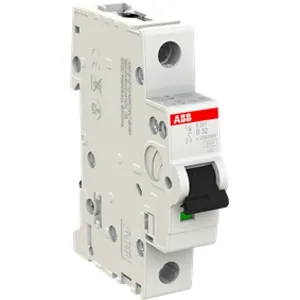

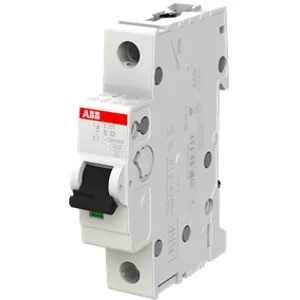

The S201-B32 shares the same robust construction as its smaller siblings: 1-pole, 17.5mm width, 6kA breaking capacity at 230/400V AC, 72V DC rating for single-pole DC use. Thermal overload protection follows the standard time-current curve for B characteristics; magnetic tripping occurs between 96A and 160A. The device occupies one module on a 35mm DIN rail, with twin cage terminals accepting conductors up to 25mm² (solid) or 16mm² (stranded). Operating temperature range is –25°C to +55°C, with 20,000 electrical cycles and 20,000 mechanical cycles.

What the Data Sheet Does Not Shout
The S201-B32 is often used as a main switch in small consumer units where the total load is below 32A, or as a branch feeder for sub-distribution boards. In residential settings, it is common for electric showers (instantaneous water heaters) rated at 7–8 kW. In commercial settings, it appears in kitchen equipment circuits, large photocopiers, and small HVAC units. The B curve remains appropriate because these loads do not produce extreme inrush currents — unlike motors or transformers, which would want a K or D curve.

Compliance and Origin
Manufactured in Germany, the S201-B32 meets IEC/EN 60898-1 for household and similar installations, as well as IEC/EN 60947-2 for industrial applications. UL 1077 recognition is available for North American control panels. The device is RoHS compliant and SVHC-free (REACH). EAN is 4016779465304.

Final Caution
A 32A breaker is not a toy. It can deliver a lethal amount of fault current. Always verify that the upstream overcurrent protective device (fuse or main breaker) can handle the let-through energy and that the cable sizing matches the 32A rating. When in doubt, consult a qualified electrician.
