Product Specifications
Manufacturer : RKI Instruments
Model Number : AirLink T3A
Type : Gas Detectors
Sensor Types : Electrochemical, infrared, catalytic bead
Outputs : 4-20mA analog, RS-485 Modbus, 900MHz/2.4GHz radio
Operating Temperature : -40° to 140°F (-40° to 60°C)
Hazardous Location : Class I, Div 1&2, Groups B,C,D
Documents: Product Manual, Product Specs
Product Description
The RKI AirLink T3A is a wireless gas transmitter with electrochemical, infrared, or catalytic bead sensor options. It provides both wired outputs (4-20mA analog, RS-485 Modbus) and wireless communication to RKI controllers, offering flexible integration for fixed gas detection systems.
Magnetic switches enable non-intrusive calibration and full system settings in the field. Features include graphical LCD with LED backlight, two individually configurable alarms, and front panel LED indicators (amber and red). The transmitter is approved for hazardous locations (Class I, Div 1&2, Groups B,C,D) and carries a 1-year warranty. Applications include petrochemical plants, refineries, water/wastewater treatment, and chemical plants.

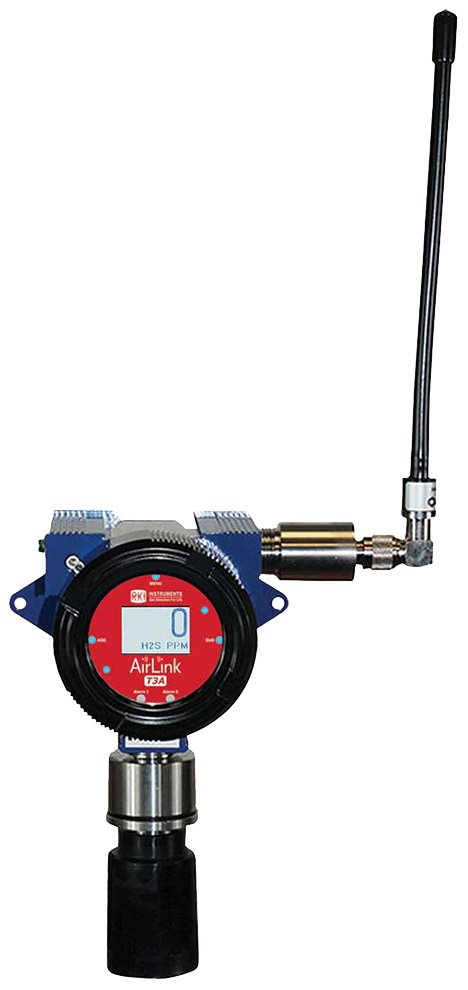

Wireless Gas Transmitter | RKI AirLink T3A
