Product Specifications
- Manufacturer
- Wilcoxon Sensing Technologies
- Product Model
- 780B
- Product Type
- Compact Dynamic Vibration (IEPE) Accelerometer
- Housing Material
- 316L Stainless Steel
- Sensitivity
- 100mV/g, ±10% Sensitivity Tolerance
- Mounting
- 1/4-28 UNF Tapped Hole with SF6 Stud (Included)
- Connector
- MIL-C-5015 2-Pin Connector
- Core Design
- Case Isolated
- Production Standard
- Manufactured in ISO 9001 Facility
- Peak FS Range
- 80g
- Resonance Frequency
- 30kHz
- Documents
- Product Specs
- Warranty
- One Year
Product Description

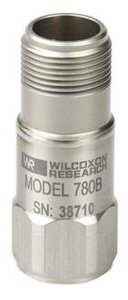

The Wilcoxon Sensing Technologies 780B compact accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and is equipped with a MIL-C-5015 2-pin connector. The accelerometer is case isolated, with 100mV/g sensitivity and ±10% sensitivity tolerance.
The 780B is manufactured in an ISO 9001 facility, ensuring consistent quality and performance for industrial applications.
Features
- Dynamic vibration (IEPE) sensor output for accurate vibration detection
- 100mV/g sensitivity with ±10% sensitivity tolerance
- Wide frequency response: 0.5 to 14,000Hz
- PZT shear sensing element design for reliable signal collection
- MIL-C-5015 2-pin connector for standard and secure connection
- 80g peak FS range to meet industrial monitoring needs
- 30kHz resonance frequency for stable operation at high frequencies
- Durable 316L stainless steel construction for long service life
- SF6 mounting stud included for convenient installation
- Case isolated design to reduce interference
