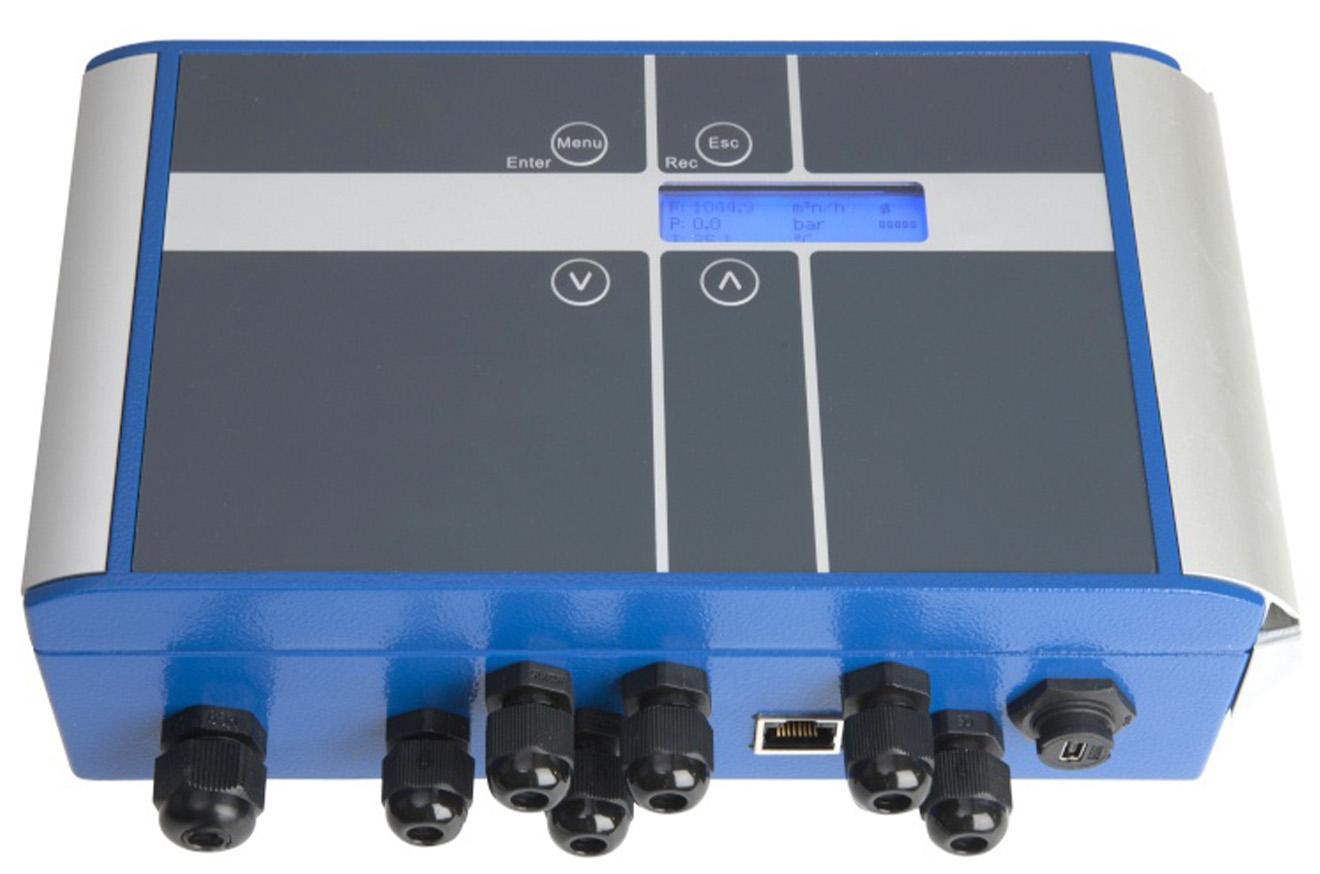

The VPInstruments VPFlowTerminal is a versatile wall-mount display and data logger designed to be the central hub for collecting and analyzing compressed air and gas data. It features five sensor inputs: one dedicated input for a VPFlowScope flow meter and four universal analog inputs, allowing it to record up to eight channels of data simultaneously. This makes the collection and analysis of critical system parameters fast and straightforward.

The terminal offers flexible connectivity for VPFlowScope probes, with both 5-pin M12 connectors for probe or differential pressure inputs and an 8-pin connector for in-line versions. The four analog inputs can accept 4-20mA, 0-10V, or pulse signals from a wide variety of other sensors, enabling comprehensive system monitoring.

Data is easily retrieved via a USB connection and VPStudio software, which exports data directly to .CSV files for further analysis in spreadsheet applications. The built-in power supply simplifies installation, while the 3-line display provides real-time information and configuration options directly on the unit.
