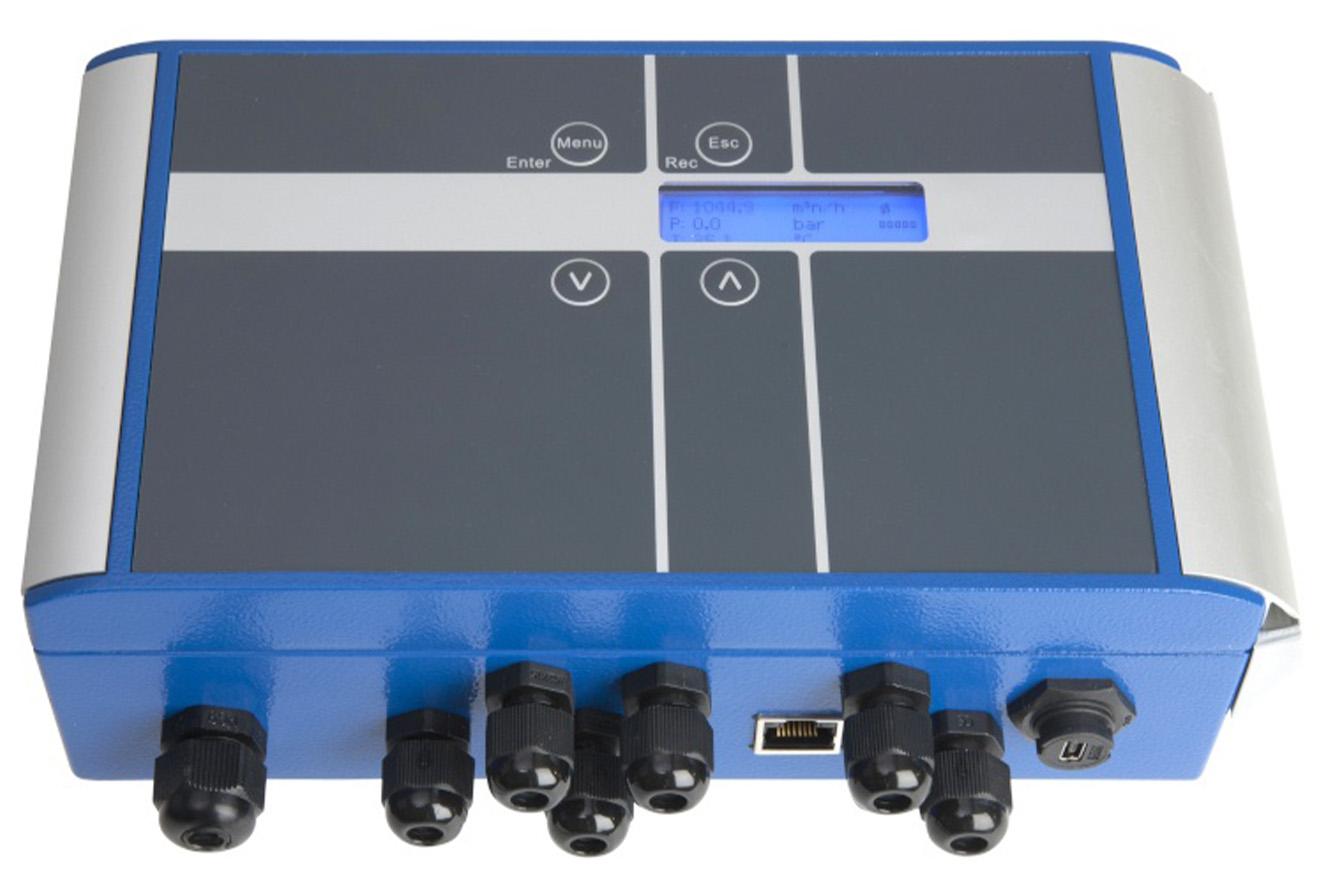

The VPInstruments VPFlowTerminal is a versatile wall-mount display and data logger serving as the central hub for compressed air and gas measurement systems. With five sensor inputs—one dedicated for a VPFlowScope flow meter and four universal analog inputs—it can record up to eight channels simultaneously, making data collection and analysis fast and straightforward.

The terminal offers flexible connectivity with M12 5-pin connectors for VPFlowScope Probe or DP inputs, and an 8-pin connector for the VPFlowScope In-Line version. The four analog inputs accept 4-20mA, 0-10V, or pulse signals from a wide variety of other sensors. A 3-line display provides real-time information with configuration keys for local operation.

The VPFlowScope family of flow meters complements the terminal:

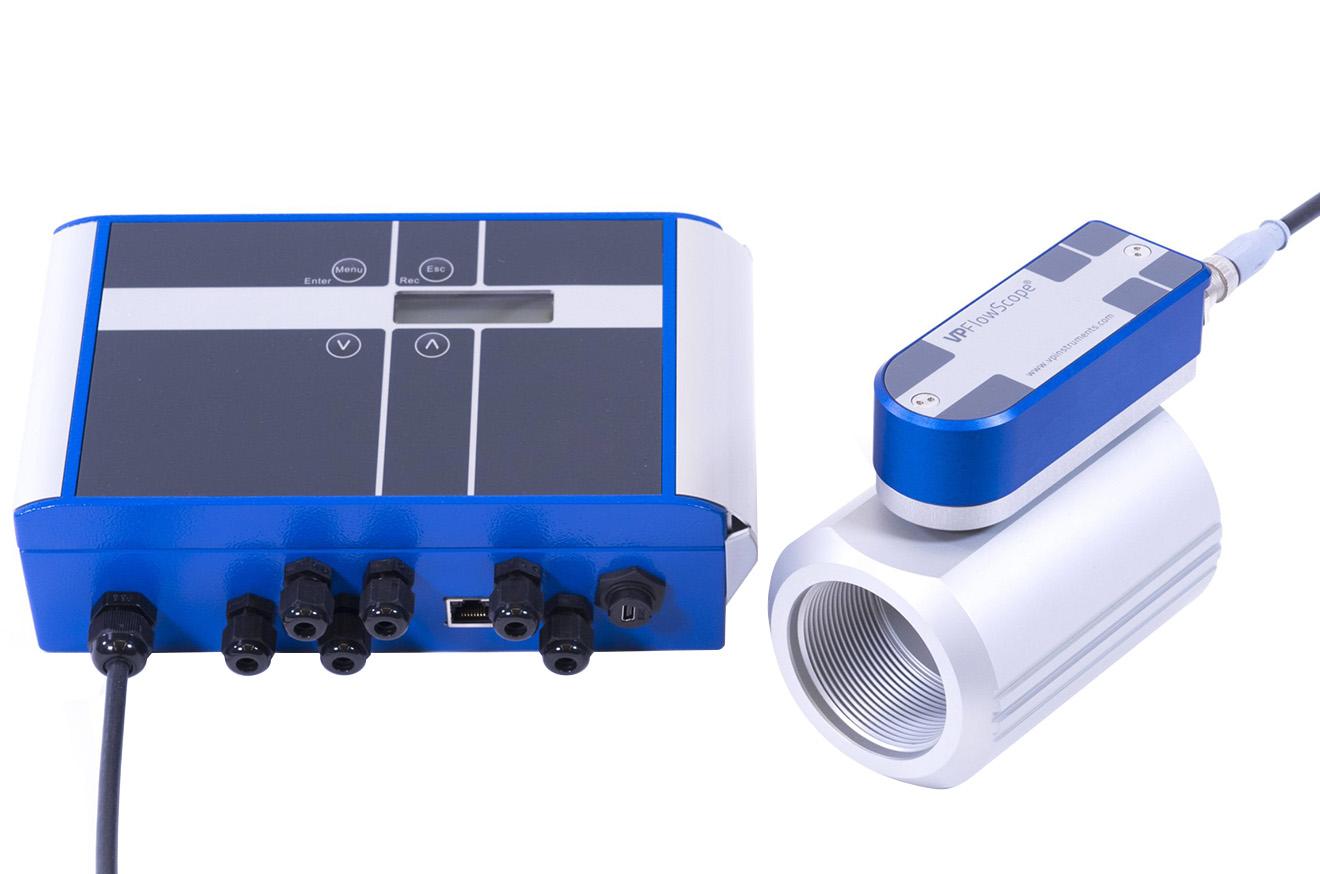

VPFlowScope In-Line: Ideal for point-of-use consumption measurement in compressed air systems. It measures mass flow, temperature, and pressure simultaneously in both directions, suitable for both air and gas flow measurement.

VPFlowScope DP: Optimized for hot, saturated compressed air measurements, providing simultaneous mass flow, temperature, and pressure data in demanding conditions.

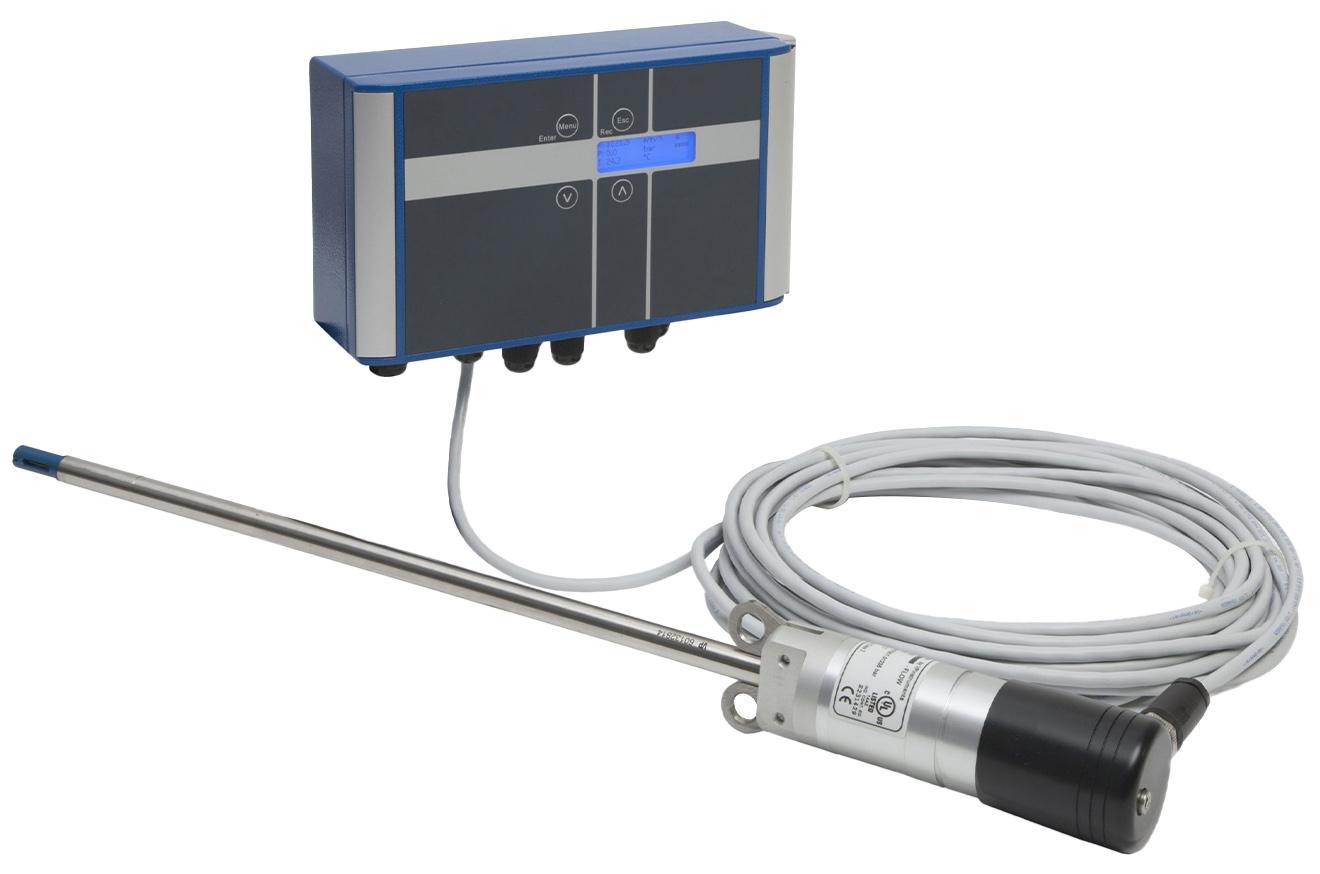

VPFlowScope Probe: Designed to handle various pipe diameters, this probe measures mass flow, temperature, and pressure simultaneously in both flow directions.

Data is easily retrieved via USB connection and VPStudio software, which exports directly to .CSV files for analysis. The built-in power supply simplifies installation, making this a complete solution for comprehensive compressed air monitoring.
