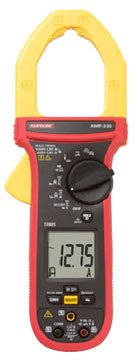

The Amprobe AMP-330 TRMS Clamp Meter is a versatile clamp-on amp meter for electrical motor maintenance and HVAC testing in high voltage industrial environments. It delivers all the features of the AMP-320, plus a built-in work light, peak hold function, CAT IV 600 V / CAT III 1000 V safety rating, and a large 2.0 inch (51 mm) jaw opening. HVAC technicians will find dedicated temperature and capacitance measurements, plus DC Microamps capability for testing flame sensors.

It also has core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush current measurement for motor start-up monitoring. The low pass filter enables accurate measurement of current and voltage on variable frequency drives. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It also offers a full range of standard multimeter features, including AC/DC current, AC/DC voltage, frequency, True-RMS, non-contact voltage detection, resistance, and continuity.

Features

• Voltage measurement up to 1000 VAC/DC
• AC and DC current measurement up to 1000 A
• True-RMS measurement for accurate readings on distorted waveforms
• Low pass filter for variable frequency drive (VFD) measurements
• Amp-tip function for precision low-current measurement
• Non-contact voltage detection (NCV)
• Audible continuity and diode test
• Data hold, relative zero, MAX/MIN/AVG measurement modes
• Safety ratings:
  • CAT IV 600V
  • CAT III 1000V
• Built-in work light for low-light environments
• Peak hold function for transient current capture
• Large 2.0 inch (51 mm) jaw opening
