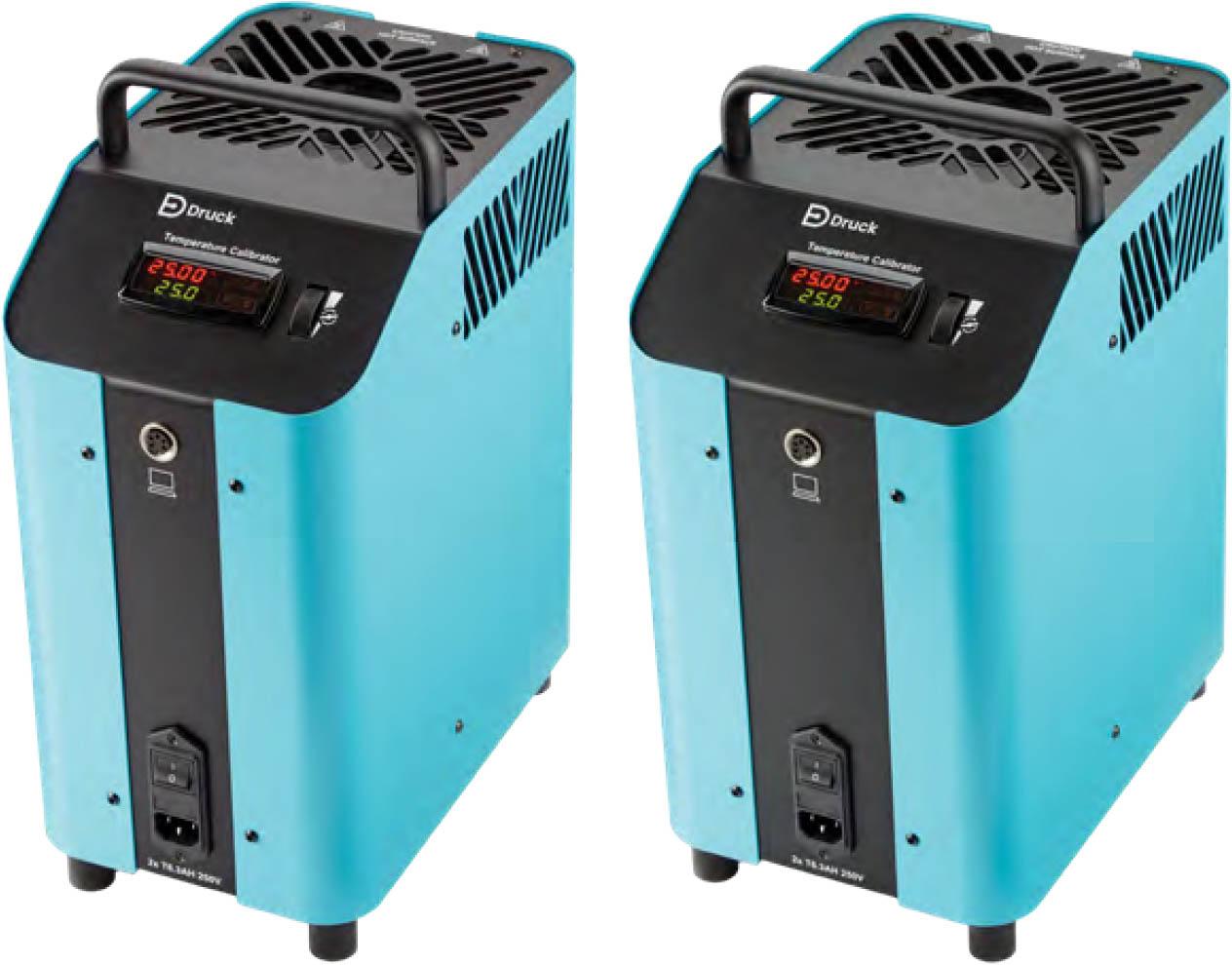

The Druck TC Series Dry Block Temperature Calibrator is a solution for testing temperature devices over a range of temperatures from -35 to 650°C (-30°F to 1200°F). These dry block calibrators incorporate the latest metal block and electronic control technology, with a choice of precision bored well inserts to accommodate a wide range of test devices.

The two models available are the DryTC165, which generates temperatures from -35°C to 165°C, and the DryTC650, which generates temperatures from ambient to 650°C. Both models provide high accuracy (from ±0.2°C), excellent set-point stability (±0.05°C), and rapid heating and cooling times.

Dry block calibrators greatly simplify the test and calibration of process sensor heads, probes, switches and thermometers, but optimum performance relies on a good fit of the device in the well insert. To facilitate this, a range of insertion sleeves are available with hole diameters to suit the most common probes and devices. The lightweight and robust design makes them ideal for field use.
