The elrest eROBUSTO RMC 50 series represents a powerful and versatile class of CODESYS V3 programmable controllers designed for demanding industrial automation applications. At its core, the controller leverages the full capabilities of the CODESYS V3 development environment, providing engineers with a professional platform for programming according to the IEC 61131-3 standard. This unified environment allows for the configuration of control code, I/O modules, and WEB visualizations without the need for additional tools, significantly streamlining the development, testing, and commissioning process.

A standout feature of the eROBUSTO RMC 50 is its exceptional performance as a fieldbus gateway. The master module can be equipped with up to four Ethernet interfaces, incorporating a triple Ethernet switch and a dedicated gigabit port. This extensive connectivity enables the controller to act as a central hub for data collection, processing, and compression from diverse sources. It seamlessly supports a wide array of industrial fieldbus protocols, including EtherCAT, ProfiNet, Ethernet, and CANopen, ensuring straightforward integration into existing plant infrastructures and enabling efficient communication with both legacy and modern devices.

Beyond traditional PLC functions, the eROBUSTO RMC 50 offers advanced data management capabilities. Through its integration with CODESYS, the controller can directly store process data in or retrieve it from a local or decentralized SQL database. This feature is invaluable for monitoring operating parameters and quality metrics, enabling detailed historical analysis, traceability, and compliance with Industry 4.0 standards. The ability to manage data directly at the edge controller level reduces the burden on higher-level SCADA and MES systems, providing a more responsive and efficient data architecture.

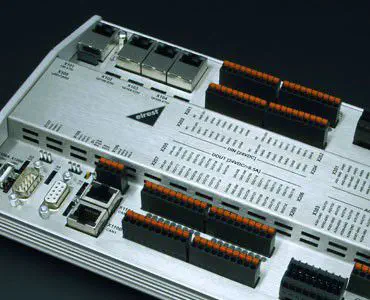

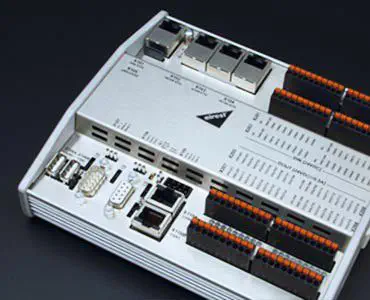

The hardware design of the eROBUSTO RMC 50 reflects a commitment to durability and efficiency. Housed in a robust aluminum continuous casting profile, the controller is built to withstand the rigors of industrial environments. Its sophisticated mechanical and electronic integration allows for optimal heat dissipation without the need for active cooling, resulting in a fanless, low-maintenance, and environmentally friendly solution with minimal power consumption. For applications requiring distributed I/O, the eROBUSTO Slaves modules provide a scalable solution for decentralized inputs and outputs, communicating seamlessly via the powerful CANopen network. Furthermore, the included program libraries enable object-oriented fieldbus configuration and I/O assignment, which can even be modified during PLC runtime for maximum operational flexibility.

Applications

The elrest eROBUSTO RMC 50 series is ideally suited for a wide range of industrial automation applications, including:

• Factory Automation: Centralized and decentralized control of manufacturing processes, assembly lines, and robotics cells.
• Process Automation: Monitoring and control of temperature, pressure, flow, and other analog variables in industries such as chemical, pharmaceutical, and water treatment.
• Building Automation: Managing HVAC systems, lighting, energy monitoring, and access control in commercial and industrial buildings.
• Data Gateway Applications: Collecting and aggregating data from diverse field devices and protocols for edge processing and transmission to cloud or enterprise systems.
• Machine Control: Providing a compact and powerful control solution for packaging machinery, material handling equipment, and special-purpose machines.

Technical Specifications
