Product Specifications
Brand: Emerson PACSystems
Model Number: VersaMax Micro 23
Type: Micro PLC
I/O: 23 discrete I/O, 2 analog inputs, 1 analog output; expandable to 135
Memory: 9K user program logic memory
Communication: RS-232 (RJ-45) and RS-485 (DB-15)
Documents: Product Manual, Product Specs
Product Description

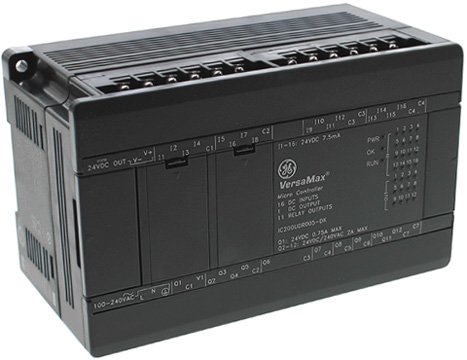

The Emerson PACSystems VersaMax Micro 23 PLC features 23 discrete I/O and two analog inputs and one analog output built-in (expandable to 135 I/O) points. The micro 23 executes fast cycle, robust instruction set and generous memory to allow more flexible programming. It's all packaged in a sturdy modular design for easy access and long-term durability.
Related Products
- Emerson VersaMax NIU — PROFIBUS DP slave/master, DeviceNet, AS-i master
- Emerson VersaMax Power — 24VDC, 120/240VAC, 12VDC, expanded 3.3VDC option
- Emerson VersaMax Remote — PROFINET, PROFIBUS, DeviceNet, Ethernet, Genius
Micro PLC - 23 I/O with Analog | Emerson VersaMax Micro 23
Product Specifications
Brand: Emerson PACSystems
Model Number: VersaMax Micro 23
Type: Micro PLC
I/O: 23 discrete I/O, 2 analog inputs, 1 analog output; expandable to 135
Memory: 9K user program logic memory
Communication: RS-232 (RJ-45) and RS-485 (DB-15)
Documents: Product Manual, Product Specs
