Product Specifications
- Manufacturer
- Endress+Hauser
- Product Number
- Proline Promass H 100 / 8H1B
- Type
- Corrosion-Resistant Coriolis Flow Meter
- Nominal Diameter
- DN 8 to 50 (3/8 to 2in)
- Mass Flow Accuracy (Liquid)
- ±0.10%
- Volume Flow Accuracy (Liquid)
- ±0.10%
- Mass Flow Accuracy (Gas, Tantalum)
- ±0.50%
- Density Accuracy (Liquid)
- ±0.0005 g/cm³
- Measuring Range
- 0 to 70,000 kg/h (0 to 2570 lb/min)
- Medium Temperature Range
- Ta: –50 to +150°C, Zr: –50 to +205°C
- Max Process Pressure
- PN 40, Class 300, 20K
- Wetted Materials
- Measuring tube: Tantalum 2.5W or Zirconium 702 (UNS R60702)
- Transmitter Housing
- Ultra-compact
- Ingress Protection
- IP69K
- Local Display
- Available
- Documents
- Product Manual , Product Specs
Product Description
The E+H Proline Promass H 100 Coriolis flow meter features a chemically resistant single-tube design for applications requiring highest corrosion resistance. Combined with the smallest transmitter housing available today, it delivers full performance on the smallest footprint, making it the preferred choice for system integrators, skid builders, and equipment manufacturers where space is at a premium.
Wetted parts in tantalum or zirconium provide superior resistance to chemically aggressive fluids. DN 8 to 50 (3/8 to 2in) sizes. Mass flow accuracy ±0.10% for liquids, ±0.50% for gases (tantalum). Density accuracy ±0.0005 g/cm³. Medium temperature up to +205°C (zirconium).
Ultra-compact transmitter housing with IP69K protection. Local display option available. Heartbeat Technology ensures measurement reliability.
Related Products
- Endress+Hauser 8E1B — Cost-effective alternative to volumetric meters, IP69
- Endress+Hauser 8I1B — In-line viscosity, TMB technology, ultra-compact, skid builder

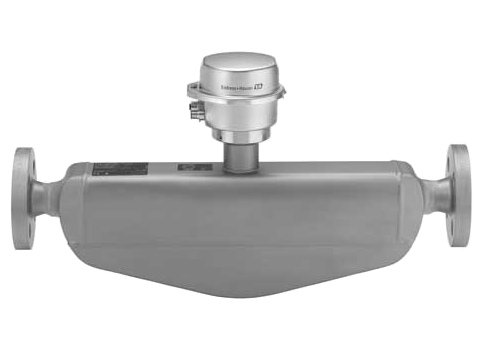

Corrosion-Resistant Coriolis Meter - Tantalum/Zirconium, Ultra-Compact | E+H Proline Promass H 100
