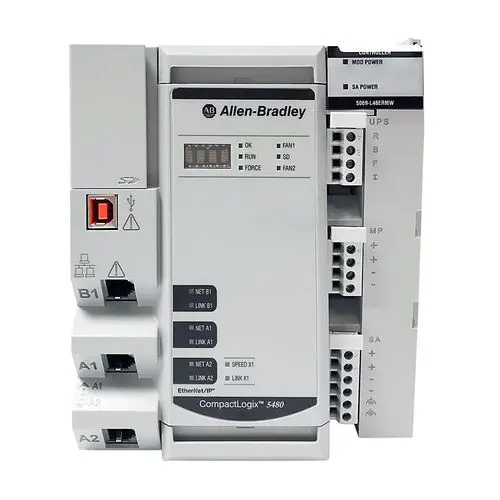

The Allen-Bradley CompactLogix 5480 occupies a unique position in the Logix portfolio: it is the only CompactLogix that runs a full Windows 10 IoT Enterprise operating system alongside the deterministic Logix control engine on the same hardware. This dual-OS architecture means one physical device handles real-time machine control, data aggregation, edge analytics, and local HMI — eliminating the separate industrial PC that a conventional CompactLogix 5380 or ControlLogix would require for the same workload. The controller uses the identical control engine found in the ControlLogix 5580, so programs, motion instructions, and safety logic are directly portable between the platforms.

When does the dual-OS architecture add value?

Three scenarios justify choosing the 5480 over a simpler CompactLogix 5380. Edge computing: the Windows side can run database connectors, analytics packages, or custom .NET applications that pre-process data before sending it upstream — reducing bandwidth and cloud ingestion costs. Local visualization: a DisplayPort-connected monitor can host a FactoryTalk View SE station or a web-based dashboard directly from the controller, useful for skid-mounted equipment and remote wellheads where a separate HMI panel adds cost and complexity. Data bridging: the Windows OS can translate between EtherNet/IP on the Logix side and non-Rockwell protocols (OPC UA client, MQTT, REST APIs) without an external gateway, simplifying mixed-vendor architectures. The trade-off is that the Windows OS requires the same patch management and cybersecurity hygiene as any other Windows endpoint on the OT network.

What are the I/O and motion capabilities?

Logix memory ranges from 3 MB (5069-L430ERMW, 60 nodes, 16 axes) to 20 MB (5069-L4200ERMW, 250+ nodes, 150 axes). All models support up to 31 local Bulletin 5069 Compact I/O modules — digital, analog, safety, and specialty — powered by a MOD Power bus at 18–32V DC with 72 W maximum consumption and 6 A passthrough. The three GbE ports support Device Level Ring (DLR) and linear topologies, with two ports configurable for dual-IP operation to isolate machine and plant networks on separate subnets without additional switches. Motion supports integrated EtherNet/IP drives with CIP Motion, covering positioning, gearing, camming, and registration — the same motion instruction set as the ControlLogix platform.
