Product Specifications

Product Description

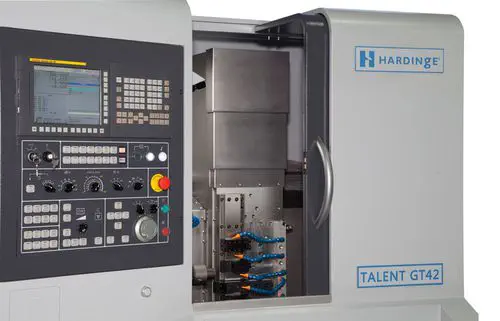

The Talent GT42 is Hardinge's gang-tool turning center built on a solid one-piece cast-iron base with linear roller guides on every axis. A vertical gang slide carries up to 12 tools with no turret indexing, and the A2-5 spindle takes 16C collets for fast bar changeover.

Why a gang-tool slide instead of an indexed turret?

A turret lathe spends 0.2 to 0.5 seconds indexing between tools, and on a short-cycle small part that idle time is a large slice of the total. The Talent GT42's gang slide has every tool ready at once, so the tool change is the slide move itself — which is why a 65 mm part comes off with chip-to-cut time a turret machine cannot match.

  • 65 mm machining diameter, 42 mm bar
  • A2-5 spindle, 7,000 rpm, 7.5 kW
  • 12-tool vertical gang slide, no indexing
  • Linear roller guides, one-piece cast base

Against an indexed-turret lathe, the Talent GT42 trades tool capacity for zero indexing time — the layout a high-volume small-part job keeps winning on.

Resources & Documentation

Hardinge
Compare

Hardinge Talent GT42 Gang-Tool Turning Center, 7,000 rpm

A2-5, 16C Collet
MPN/Series: Talent GT42

Product Specifications

Brand
Hardinge Inc.
Part Number
Talent GT42
Type
Gang-Tool CNC Turning Center
Spindle
A2-5, 16C collet, 7,000 rpm, 7.5 kW
Max Machining Diameter
65 mm
Max Turning Length
210 mm
Bar Capacity
42 mm
Tool Stations
12, vertical gang slide
Rapids
X/Z 32 m/min
Control
Siemens 828D or Fanuc 0i-TF
