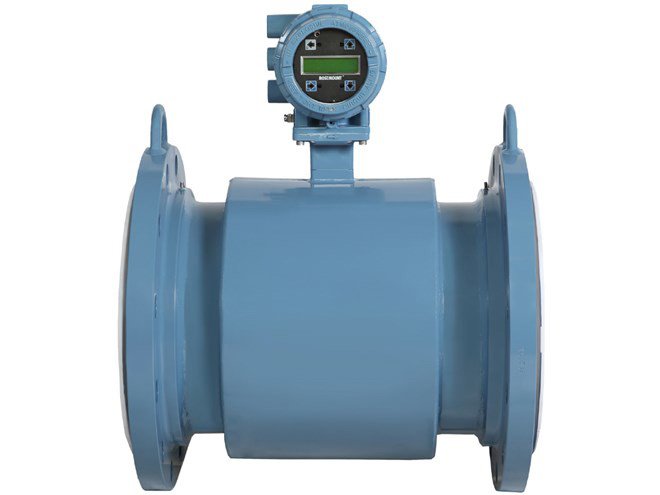

The Rosemount 8750W Magnetic Flow Meter brings together performance, reliability, and intelligent diagnostics to create a superior solution for water, wastewater, and utility flow measurement. Available in sizes from 1/2 to 48 inches, the 8750W features fully welded construction to withstand vibration and dual-compartment transmitter housing to keep electronics isolated from moisture and contamination .

The 8750 includes field or wall-mounted transmitter options for fast, intuitive configuration. The field mount Rosemount 32ES transmitter includes die-cast aluminum housing and is available with an optional backlit two-line by 16-character local operator interface. The transmitter can be configured by optical switches to simplify adjustments without removing the cover .

The wall mount Rosemount 12ES transmitter features an easy-to-use operator interface with intuitive 15-button keypad providing instant access to commonly used functions, and a 2-line by 20-character display for clear indication .

The 8750W uses wafer or flanged process connections. Flanged sensors are fabricated from stainless and carbon steel and welded to provide a hermetic seal that protects against moisture and other contaminants. The flangeless wafer sensor design is economical, compact, and lightweight, with alignment spacers assisting with centering in the process line .
