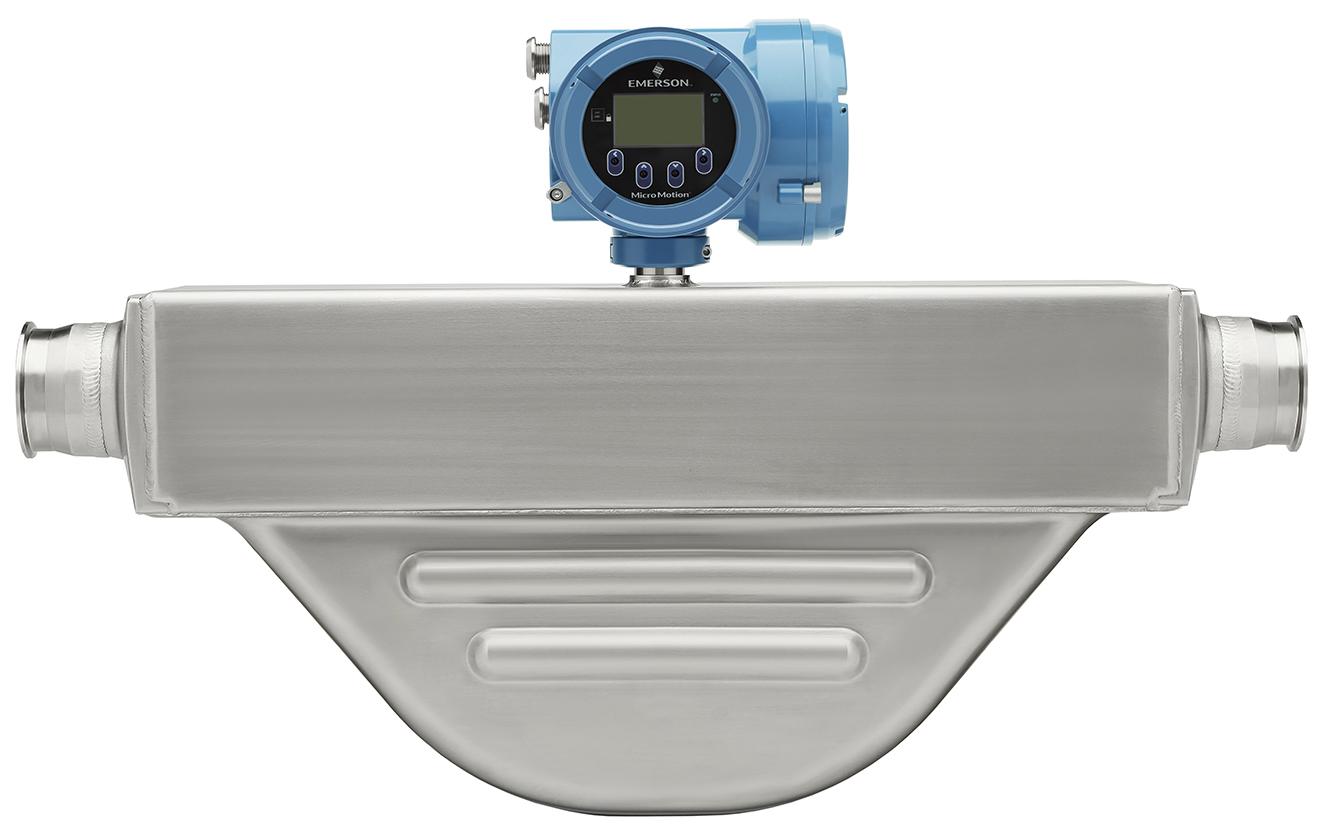

The Micro Motion H-Series Coriolis meter is specifically engineered for hygienic process applications, balancing high sensitivity to flow and density with a compact, self-draining, and cleanable design. It enables efficient cleaning and draining of flow tubes while delivering exceptional turndown capability and uncompromising measurement performance for flow, density, and concentration parameters such as Brix and % Solids under varying real-world conditions. The low drive frequency provides excellent immunity to entrained gas and two-phase flow [citation:1][citation:3].

Liquid mass flow accuracy ranges from ±0.10% to ±0.15% of rate, with volume flow accuracy of ±0.15% to ±0.25%. Gas flow accuracy is ±0.50% of rate. Density accuracy spans ±0.0005 to ±0.002 g/cm³ (±0.5 to 2.0 kg/m³) [citation:1][citation:6]. Wetted parts are 316L stainless steel, with optional surface finishes up to 15 Ra for ultra-pure applications. Operating temperature range is -150 to 400°F (-100 to 204°C) with pressure rating up to 1450 psi (100 bar) [citation:1][citation:6].

The H-Series platform reduces system integration and setup costs. Smart Meter Verification (SMV) provides advanced diagnostics that confirm the meter is operating with the same performance as the day it was installed [citation:1][citation:3]. The meters are 3-A authorized and EHEDG certified, suitable for SIP and CIP environments, and carry ATEX, IECEx, and CSA hazardous area approvals [citation:1][citation:3][citation:6]. Line sizes range from 1/4" to 4" (DN6 to DN100) [citation:3][citation:9].
