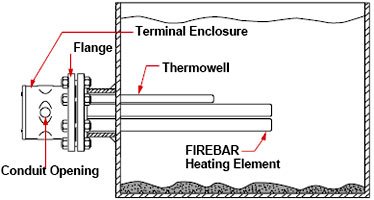

Watlow flange immersion heaters deliver robust heating solutions for liquids and gases in tanks and pressure vessels, particularly in applications requiring higher kilowatt ratings. These heaters feature WATROD or FIREBAR heating elements brazed, staked, or welded to four- or six-bolt flanges that mount directly to mating flanges welded to tank wall nozzles. Ratings up to one megawatt with watt densities up to 100W/in² and sheath temperatures to 1600°F enable use in the most demanding industrial processes.

FIREBAR Element Advantages

FIREBAR flat tubular elements provide unique benefits for liquid immersion applications requiring high kilowatts in confined spaces. The flat surface geometry packs more power in a smaller bundle with lower watt density, making these heaters particularly effective for petroleum-based liquids where coking and scaling are concerns. The flat profile allows fluid flow to create a wiping effect that helps break deposits off the heater surface.

Installation and Maintenance

Easy installation and maintenance are key features of Watlow flange immersion heaters. Heater change-out requires only unbolting the flange and replacing the unit, minimizing equipment downtime. Integral thermowells allow temperature sensor insertion and replacement without draining the tank. Baffles can be arranged on the element bundle for forced circulation applications to enhance fluid or gas flow for improved heat transfer.

Configuration Options

Available with ANSI/ANSI compatible flanges from 3 to 14 inches (custom sizes up to 24 inches available), these heaters offer extensive customization. Terminal enclosures include standard general purpose (NEMA 1) for easy wiring access, with moisture-resistant and explosion-proof options available. Optional SPST and DPST thermostats provide integrated temperature control. All units undergo inspection and seal leakage testing prior to shipment.
