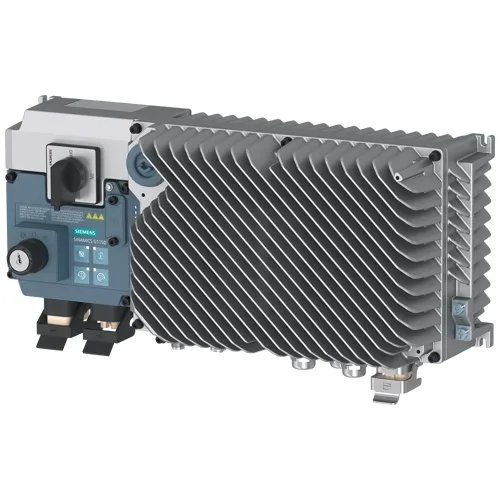

The 6SL3520-0XK02-2AB0 is the most cost-effective 2.2 kW entry point into the G120X wall-mounted family, delivering the full IP65/66 sealed-drive platform with a basic I/O configuration. At 11.8 A output and only 134 mm deep, it suits small pumps, fans, and compressors where the control scheme is simple — run command, speed reference, and a fault contact are all that's needed — and the budget does not stretch to unused I/O channels.

When does the basic I/O configuration make sense for a 2.2 kW drive?

The -0AB0 fits applications where the drive is commanded by a higher-level controller (PLC or BMS) over a single interface and only needs minimal hardwired signals. Common examples: a condenser-water pump started and stopped by a dry contact, with speed set via analog 0–10 V from the BMS, and a single volt-free fault relay wired back to the alarm panel. If you need a second analog input for a differential-pressure sensor or a dedicated safety input, step up to the -0AA0 or -0AF0.

Does the basic variant compromise on motor protection or environmental rating?

No. The 6SL3520-0XK02-2AB0 carries the same IP65/66 / UL Type 4X rating, same -30 to +40°C ambient range, same C2 EMC filter, and same 200%/3s overload capability as every other G120X wall-mounted variant. The suffix only affects the number of I/O terminals and the communication interface options — the drive core, power stage, and enclosure are identical.
