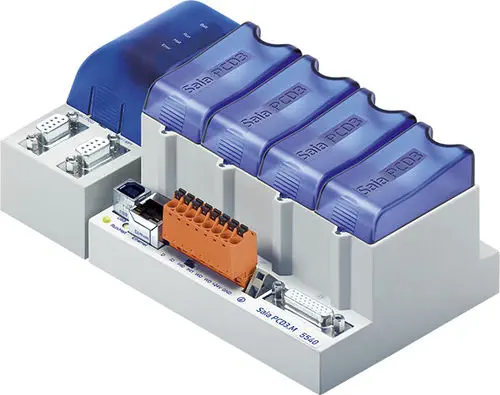

The Saia PCD3.M5 series is a high-performance programmable logic controller (PLC) with integrated I/O, featuring a modular cassette design that offers exceptional flexibility for building automation and industrial control applications. Powered by a fast 32-bit RISC processor, it delivers deterministic real-time performance for demanding control and communication tasks. The controller integrates an automation server directly into the base unit, providing web server, FTP, and email capabilities for remote monitoring and diagnostics.

Modular Cassette Design

The PCD3.M5 series employs a modular cassette architecture that allows flexible configuration of I/O and communication modules. The CPU basic module includes Ethernet TCP/IP and Profibus-DP Slave (1.5 Mbits) as standard, with the ability to run up to 13 communication interfaces simultaneously. I/O modules (digital, analog, counter, and motion control) are available for expansion, supporting up to 64 module slots and 1023 I/O points.

High-Performance Processing

With bit operation processing times of 0.3-1.5 µs and word operation times of 0.9 µs, the PCD3.M5 series delivers fast and deterministic control for complex automation tasks. The generous memory resources include 1 MB of program memory (RAM), 2 MB of flash memory for configuration and backup, and optional flash memory modules that expand storage to 4 GB for data logging and archiving.

Comprehensive Communication

The PCD3.M5 series supports a wide range of communication interfaces and protocols:

• Ethernet TCP/IP: 10/100 Mbits, full-duplex, auto-sensing/auto-crossing, supporting web server, FTP, email, and Modbus TCP
• Profibus-DP Slave: Up to 1.5 Mbits via D-Sub connector (Port 10)
• RS-232: D-Sub connector (PGU/Port 0), up to 115 kbits
• RS-485: Terminal block (Port 2), up to 115 kbits, supports Profi S-Net up to 187.5 kbits
• RS-422/485: D-Sub connector (Port 3), up to 115 kbits
• USB 1.1: For programming and configuration via Saia PG5® software

Optional interface modules (PCD3.F1xx and PCD3.F2xx) can be installed in I/O slots to add support for RS-232, RS-422, RS-485, BACnet® MS/TP, Belimo MP-Bus, DALI, and M-Bus.

Robust & Reliable Design

Built for industrial environments, the PCD3.M5 series operates reliably from 0°C to +55°C and is protected to IP20. It mounts on standard 35 mm DIN rail, with compact dimensions of 38 × 163 × 58 mm and weight of approximately 350 g. The power supply accepts 24 VDC (-20/+25%) or 19 VAC ±15% full-wave rectified, with typical power consumption of 15 W (64 I/O configuration). Real-time clock (RTC) with lithium battery backup (1-3 years) ensures accurate time-stamping and scheduling. The controller is CE certified.

Programming & Software

The PCD3.M5 series is programmed using Saia PG5® programming software, which supports IEC 61131-3 programming languages. The integrated automation server provides web-based visualization and remote access capabilities, making it ideal for building automation, HVAC control, energy management, and industrial process control applications.

Applications

The Saia PCD3.M5 series is suitable for a wide range of applications, including building automation (HVAC, lighting, access control), industrial automation (machinery control, process monitoring), infrastructure automation (water/wastewater treatment, energy management), and OEM equipment control requiring high I/O density and extensive communication capabilities.
