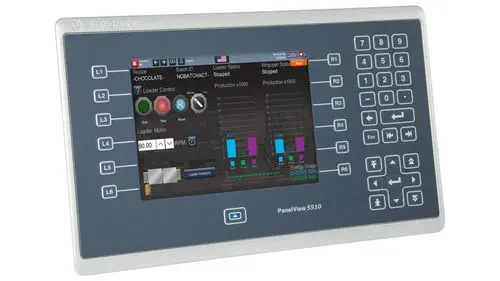

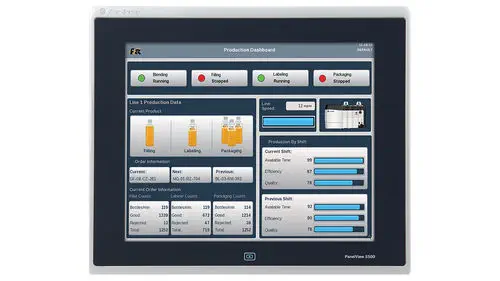

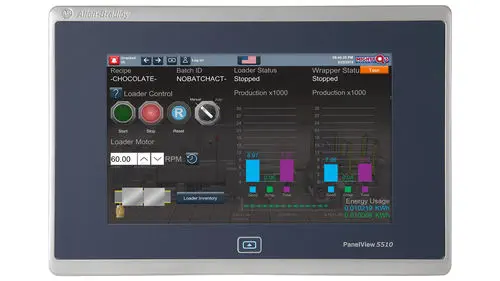

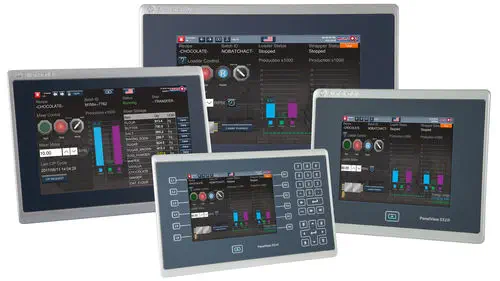

The Allen-Bradley PanelView 5000 is the current-generation operator interface terminal configured in Studio 5000 View Designer, not FactoryTalk View ME. It spans two tiers — the 5310 (6 to 12 inch widescreen) and the 5510 (7 to 21.5 inch, including a PCAP touch and stainless IP69K option) — for Logix lines that want the HMI inside the controller project.

5310 or 5510 — which PanelView 5000 tier?

The 5310 covers 6 to 12 inch widescreen single-controller stations — 100 screens, 4000 alarms, 1 GB RAM. The 5510 scales to 21.5 inch with a dual-core 1.46 GHz CPU, four controllers, 500 screens, DLR, and an HTML5 browser, plus an IP69K stainless front for washdown. Choose 5310 for a single local station; choose 5510 when one terminal serves several controllers or needs a browser pane on the line. The alternative — a Plus 7 running ME — means maintaining a second HMI software and converting the project.

Why View Designer instead of FactoryTalk View ME?

PanelView 5000 is configured in Studio 5000 View Designer, not FactoryTalk View ME, so the HMI shares the controller's tag database and project — no separate ME development or tag export. For a Logix line that already lives in Studio 5000, that removes a conversion step every time the screen changes. The alternative, a Plus 7 terminal, keeps ME but forces a parallel toolchain and a tag-sync chore on every revision.

What does the IP69K stainless option buy a food plant?

The 5510 offers an IP69K-rated stainless front for high-pressure, high-temperature washdown — the kind of cleaning a food or beverage line gets daily. A standard IP66 terminal survives spray but not the directed high-pressure jet of a sanitation cycle; the stainless 5510 does, so the operator station stays in place through cleanup. The alternative — pulling the HMI for every washdown — stops production twice a day.
