Product Specifications
- Manufacturer
- Danatronics
- Product Number
- ECHO PRO
- Type
- Ultrasonic Flaw Detector
- Measurement Range
- 0.353in to 277in at 5,900m/s (0.2320in/μs)
- Measurement Rate
- 10 Hz to 2 kHz adjustable
- Measurement Types
- Single, dual, thru transmission, angle beam, delay lines, contact, immersion, echo to echo, dry couple
- Display
- 7in wide VGA touch screen
- Battery
- 7.2V 13.6AH Li-ion, 8-10 hour life
- Power Input
- 100-240 VAC, 50-60 Hz, 1.4A max
- Interface
- USB, Wi-Fi, Bluetooth (RS-232 optional)
- Features
- Datalogger with Excel export, 2 gates, AWS, API 5UE, DAC, 600V pulser, damping, digital filters, analog/alarm outputs, color changing/vibrate alarm
- Certification
- CE certified, RoHS compliant, IP67 design, ASTM E317-15 calibration certificate included
- Documents
- Product Specs
Product Description

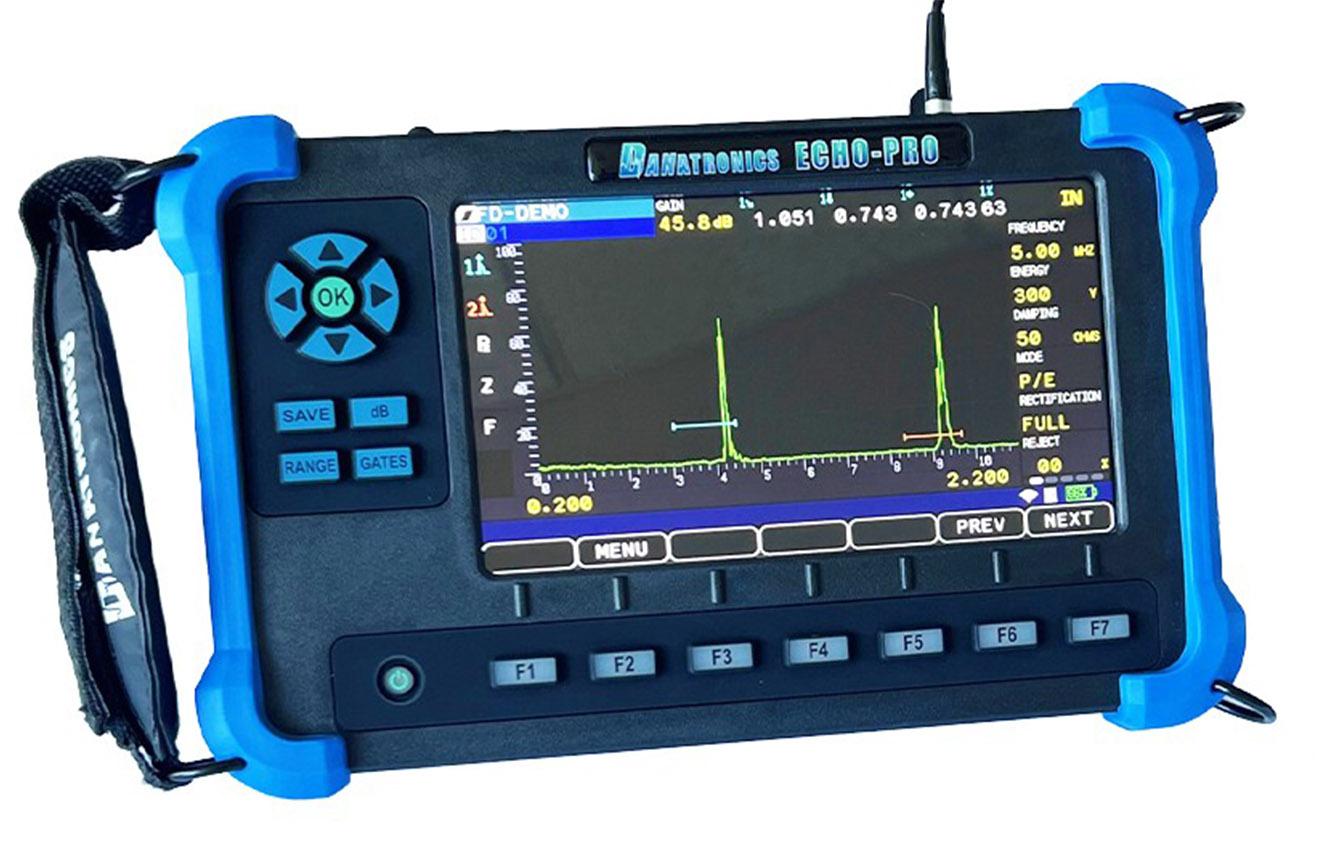

The Danatronics ECHO PRO ultrasonic flaw detector features a datalogger with export of thickness readings to Excel, 2 gates, AWS D1.1 weld inspection, API 5UE, DAC curve, single hand and touch screen operation. It incorporates a 600 Volt pulser with continuous 8-10 hour battery operation.
Advanced features include damping, digital filters, analog and alarm outputs, Wi-Fi and Bluetooth connectivity. Optional features include interface gate, floating and tracking gates, extended range, and back echo attenuator.
Measurement range is 0.353in to 277in at 5,900m/s (0.2320in/μs) with adjustable measurement rate from 10 Hz to 2 kHz. The 7-inch VGA touch screen display provides clear visualization. Power is supplied by a 7.2V 13.6AH rechargeable lithium-ion battery with 100-240 VAC input.
Interfaces include USB, Wi-Fi, Bluetooth with optional RS-232. Color changing and vibrate on alarm features enhance usability. Unit is CE certified, RoHS compliant, designed to IP67 specifications. ASTM E317-15 calibration certificate included.
