Product Specifications

Manufacturer:Danatronics

Product Number:ECHO Series (ECHO 7, ECHO 8, ECHO 9, ECHO FD)

Type:Ultrasonic Thickness Gauge

Thickness Range (ECHO 7/8/9):0.020 to 23in

Thickness Range (ECHO FD):0.400in to 23in for steel velocity

Bandwidth:5 to 30 MHz (-3dB)

Measurement Rate:ECHO 7/8/9: 4 or 25Hz; ECHO FD: 60Hz

Display:3.5in high resolution color display

Stored Setups:2,700

Features:Live A-Scan, echo to echo, B-Scan, Gridview, password/supervisor locks, angle beam option, field upgradeable

Transducer Connector:Lemo 00

Applications:Boiler tubes, pressure vessels, storage tanks, ship hulls, pipes, steel beams on bridges

Documents: Product Manual, Product Specs (2 Files)

Product Description

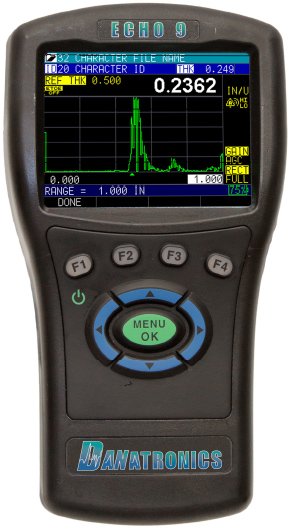

The Danatronics ECHO Series Ultrasonic Thickness Gauge features a 3.5in high resolution sunlight readable color display with live A-Scan, echo to echo to ignore coatings, B-Scan, datalogger with up to 32GB of SD card memory, and interface to Microsoft Excel. The ECHO Series is compatible with a wide variety of Danatronics dual and single element transducers.

Four models are available:

ECHO 9: Corrosion Thickness Gage
ECHO 7: Precision Thickness Gage
ECHO 8: Corrosion and Precision Thickness Gage
ECHO FD: Flaw Detector

Thickness range for ECHO 7, 8, and 9 models is 0.020 to 23in. The ECHO FD flaw detection model ranges from 0.400in full scale to 23in for steel velocity. Bandwidth is 5 to 30 MHz (-3dB).

Measurement rate for ECHO 7/8/9 is 4 or 25Hz; ECHO FD operates at 60Hz. All models feature 3.5in high resolution color display, Lemo 00 transducer connector, and Gridview. Password and supervisor locks provide security. Up to 2,700 stored setups are available. Angle beam option is available, and software options are field upgradeable.
