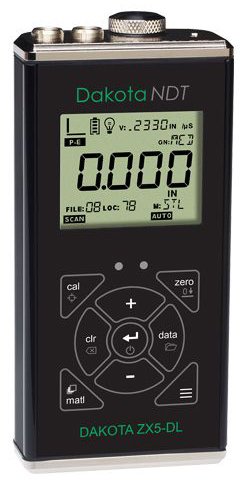

The Dakota NDT ZX5-DL thickness gauge is a basic dual-element gauge capable of locating blind surface pitting and internal defects. It measures various materials with accuracy up to ±0.001 inches (±0.01 millimeters). Pulse-Echo measurement range: 0.025–36in (0.63–914.4mm). Resolution 0.001in (0.01mm).

High Speed Scan increases repetition rate to 140Hz with 25Hz screen refresh, allowing scanned passes over arbitrary lengths while maintaining reasonable thickness representation. Adjustable gain (40–52dB) in 3dB steps. Velocity range: 0.0120–0.7300 in/μs (305–18,542 m/s). Pulse repetition frequency 200Hz, display update 10Hz.

On‑board data logger stores 10,000 readings in 40 files of 250 readings. USB download cable included. Automatic V‑path/dual path error correction. Multi‑function 4.5‑digit LCD. Factory calibration traceable to NIST, 5‑year limited warranty.
