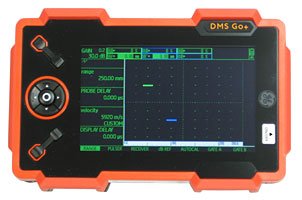

The Waygate Technologies DMS Go+ Thickness Gauge combines an intuitive user interface, powerful data management, and the ability to provide accurate, reliable, and comprehensive thickness inspection data. It features automatic gain control for excellent repeatability and corrosion monitoring.

Three model levels are available:

DMS Go+ Basic uses A-scan verification and is compatible with high-quality D-Meter dual element probes to handle a wide range of corrosion thickness applications.

DMS Go+ Base takes the basic features and adds B-scan (timed) for cross-sectional view and compatibility with single element probes for precision thickness measurement and temperature compensated readings up to 1000°F (540°C).

DMS Go+ Advanced provides all of the above plus 6 data recording file structures, 3D & 4D via UltraMATE, and TopCoat/Auto-V measurement capabilities to eliminate removal of many coatings.

Measuring range is 0.010 to 25in (0.40 to 650mm) in steel. Material velocity range is 0.0098 to 0.6299in/μs (250 to 16,000 m/s). Display resolution is selectable at 0.0001 or 0.01in (0.01 or 0.1mm). The unit is IP67 sealed, vibration and shock tested, with flip function for left or right hand use. USM Go flaw detector upgrade available.

Applications

• Oil & Gas (corrosion monitoring, wall thickness through coatings)
• Power generation (complex geometry tubes, oxide scale measurement)
• Aerospace maintenance
• Metals industry (austenitic materials)
