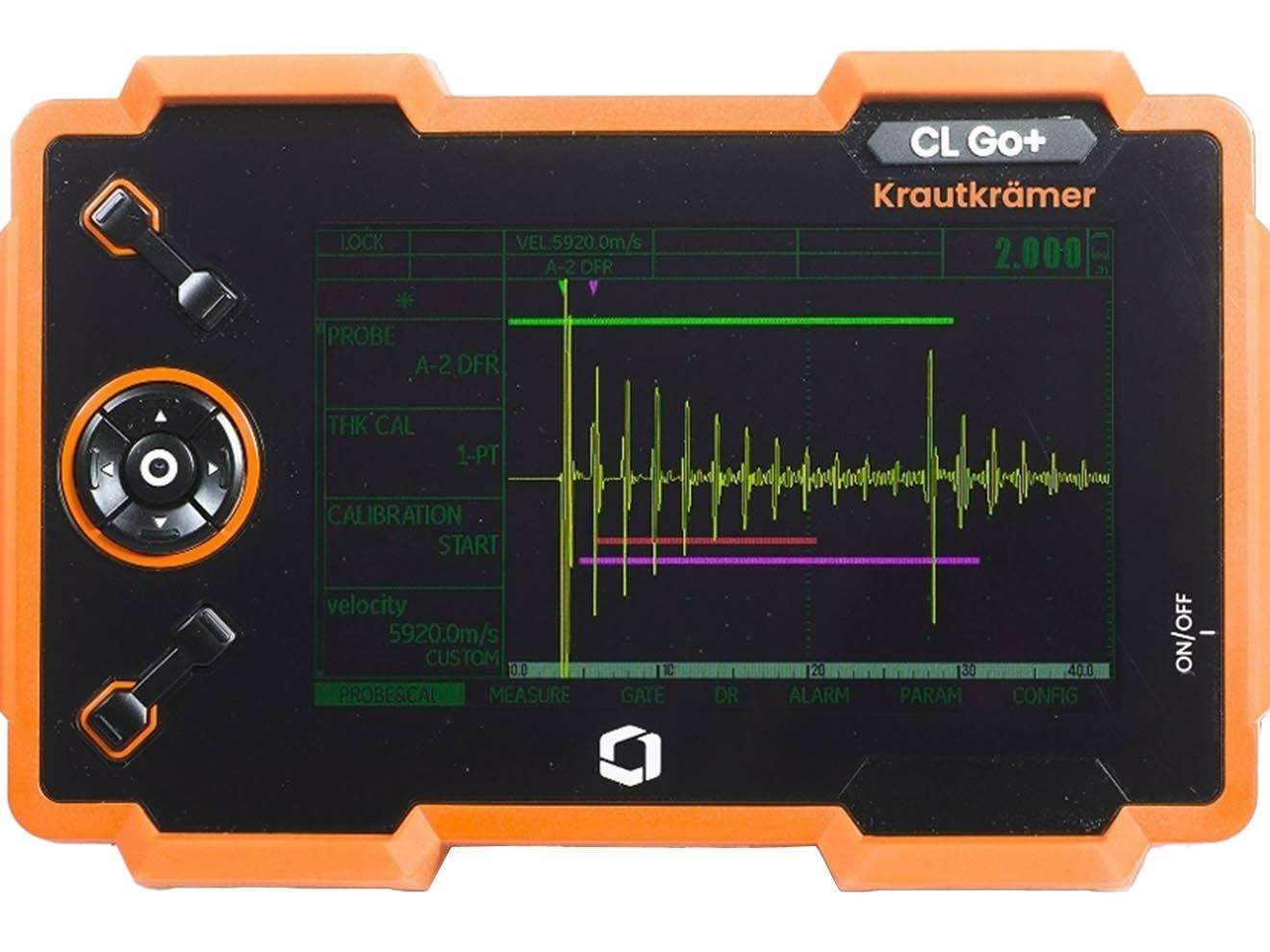

The Waygate Technologies CL Go+ Ultrasonic Thickness Gauge offers full functionality in a compact, rugged package. Quick function keys under the display and a five-way switch pad make menu navigation simple and efficient. The graphical display presents seven operation modes: Normal, Minimum Scan, Maximum Scan, Differential/Rate of Reduction, or Quality View.

Measurement range is 0.005 to 20.00 inches (0.13 to 500mm), dependent on material, probe, and surface condition, with selectable resolution of 0.0001, 0.001, or 0.01 inches. Material velocity range is 0.03937 to 0.78736 in/μs. The gauge features a programmable data recorder with SD card memory for easy file transfer to PC. Direct connection via serial or USB (optional cable) is supported.

Rated IP67 for dust and splash protection, the CL Go+ operates from 32 to 131°F and includes a universal power supply with 6-hour battery life.
