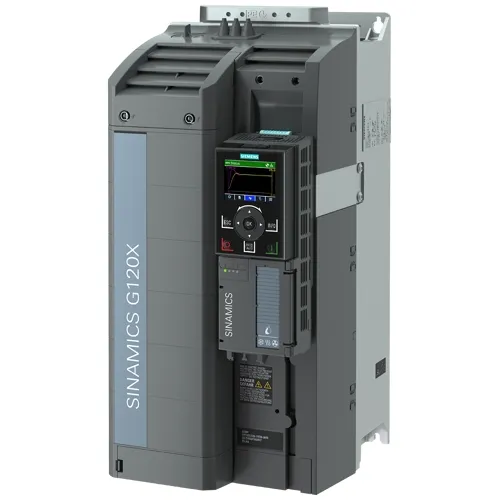

The 6SL3230-3YE34-0AB0 is the B-suffix full-feature variant of the 30 kW SINAMICS G120X converter, combining an integrated Category C2 EMC filter with a built-in IOP-2 intelligent operator panel. It delivers 81 A rated output at 380–480 V 3 AC for pump, fan, and compressor drives in water/wastewater and HVAC applications.

What the IOP-2 panel adds to commissioning and diagnostics

The IOP-2 (Intelligent Operator Panel 2) provides local access to drive parameterization, status monitoring, and diagnostics without requiring a connected PC or software tool. Engineers can commission the drive, adjust setpoints, view fault logs, and back up parameters directly at the panel. For applications where the drive is installed in an accessible control cabinet, the IOP-2 eliminates the need to bring a laptop to the cabinet for routine setup and troubleshooting tasks.

Comparison with P and F-suffix alternatives

The P-suffix (6SL3230-3YE34-0AP0) and F-suffix (6SL3230-3YE34-0AF0) variants share the same 30 kW power stage, FSD frame (200 × 472 × 239 mm), and C2 EMC filter but omit the IOP-2 panel. Commissioning on those variants is performed via the drive's fieldbus interface using Siemens Starter or TIA Portal software. Choose the B-suffix when local operator access is part of your maintenance workflow — choose P or F when all commissioning and diagnostics will be handled remotely.
