Product Specifications
- Brand
- Siemens
- Model Number
- 6SL3230-3YC24-1UF0
- Type
- SINAMICS G120X 7.5 kW frequency converter
- Series
- SINAMICS G120X
- Rated Power
- 7.5 kW
- Rated Current
- 37.8 A
- Input Voltage
- 200-240 V 3-phase
- Communication
- PROFINET, EtherNet/IP
- Frame Size
- FSC
- Protection Rating
- IP20
- EMC Filter
- Unfiltered
- Mounting
- Cabinet-mount
- DC Terminals
- Yes (for du/dt filter connection)
- Overload
- 110% / 60 s (low overload, pump/fan duty)
Product Description
A 7.5 kW load on a 200-240 V PROFINET panel is a typical small pump or fan duty, and the 6SL3230-3YC24-1UF0 is the G120X converter that fits: PROFINET and EtherNet/IP onboard, no transformer needed.
Why keep DC terminals on a 7.5 kW drive?
The DC terminals allow a du/dt filter for long or sensitive cable runs, which matters when the motor sits further from the cabinet. This unit outputs 37.8 A in an FSC frame (200 x 472 x 239 mm), IP20, at 110% / 60 s overload for pump and fan duty.
Related Products
Resources & Documentation

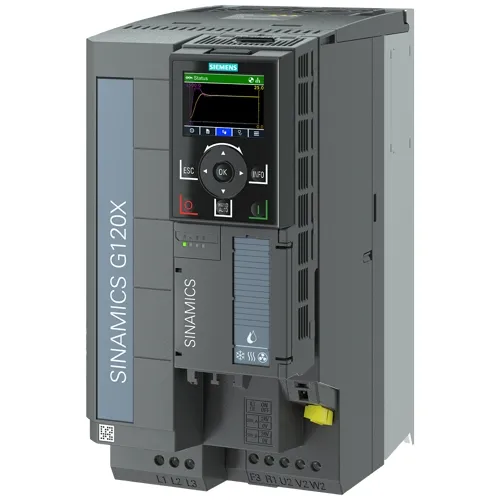

Siemens 6SL3230-3YC24-1UF0 | SINAMICS G120X 7.5 kW PROFINET EtherNet/IP drive
